XSheetNatural

X - 0.015" 36 x 48 Natural Sheet

About this product

X grade Paper Phenolic sheet in a Natural finish, this 0.015" thick 36.0" x 48.0" panel is a dependable choice for lightweight electrical insulation, gasketing, and fabricated components. Its thin profile supports easy die-cutting and clean fabrication while retaining the dimensional stability and insulating performance Paper Phenolic is known for.

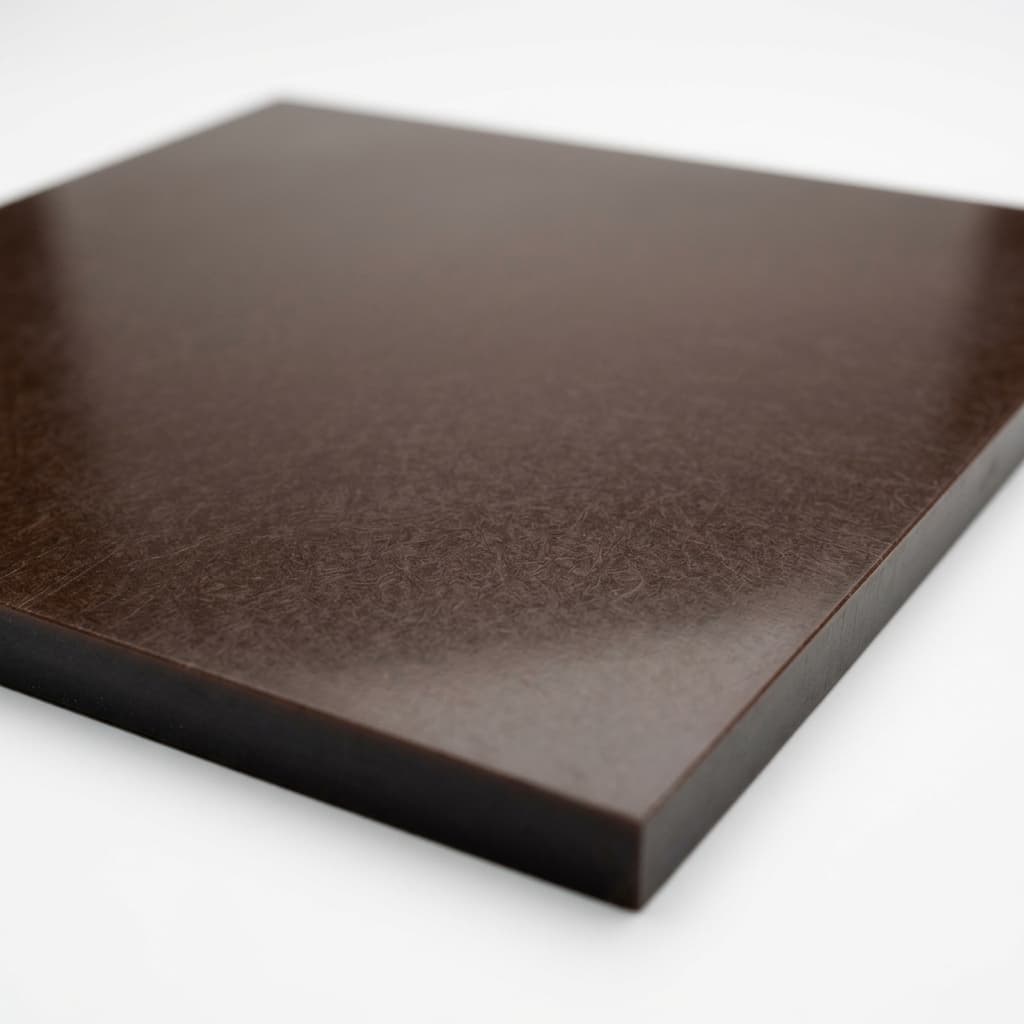

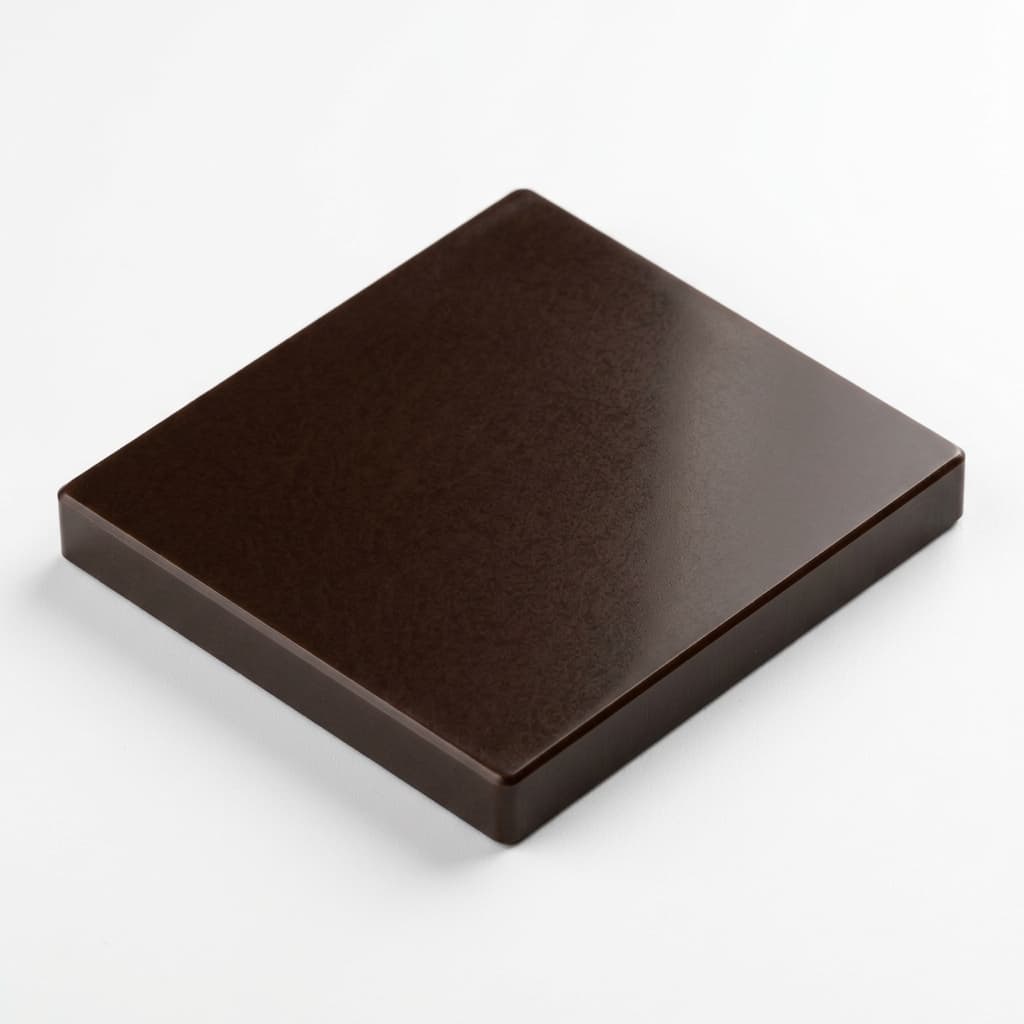

X - 0.015" 36 x 48 Natural SheetX - 0.015" 36 x 48 Natural Sheet - view 2X - 0.015" 36 x 48 Natural Sheet - view 3
Same-day shipping available
Quality certified
Expert support

This X sheet measures 0.015″ thick, 36″ × 48″, finished in natural. Available to order — price $6.63 per Each.

SpecificationValueTolerance
Shape / FormSheet
Thickness0.015″Standard
Width36″Standard
Length48″Standard
ColorNatural
Weight1.274 lbs
Specifications

Shape

Sheet

Thickness

0.015 in

Width

36 in

Length

48 in

Weight

1.274 lbs

Color

Natural

Unit of Measure

Each

Other X sizes

← All Xstock & specs

Price

$6.63 / Each

In Stock
21010 available
Available at 11 locations

Orders under $150 include a $60 small-order charge

Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
CategoryX
FormSheet
Thickness0.015 in
Width36 in
Length48 in
Weight1.274 lbs

Typical Properties — X - 0.015" 36 x 48 Natural Sheet

Phenolic Grade Xx
Operating Environment
PropertyTest MethodUnitValue
Maximum temperature°C / °F140 / 280
General
DescriptionValue
Flammability rating94HB
Specific gravity1.35
Water absorption (24 hours)2.00
Mechanical
PropertyTest MethodUnitValue
M-scale hardness120
Bond strengthpsi / MPa1,500 / 10
Compressive strengthpsi / MPa17,000 / 115
Flexural strength (LW -A 0.125″)psi / MPa34,000 / 230
Izod impact strength at 49°C (LW)0.80
Shear strengthpsi / MPa11,500 / 79
Tensile strengthpsi / MPa35,000 / 240

Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
