PEEK GF30RodNatural

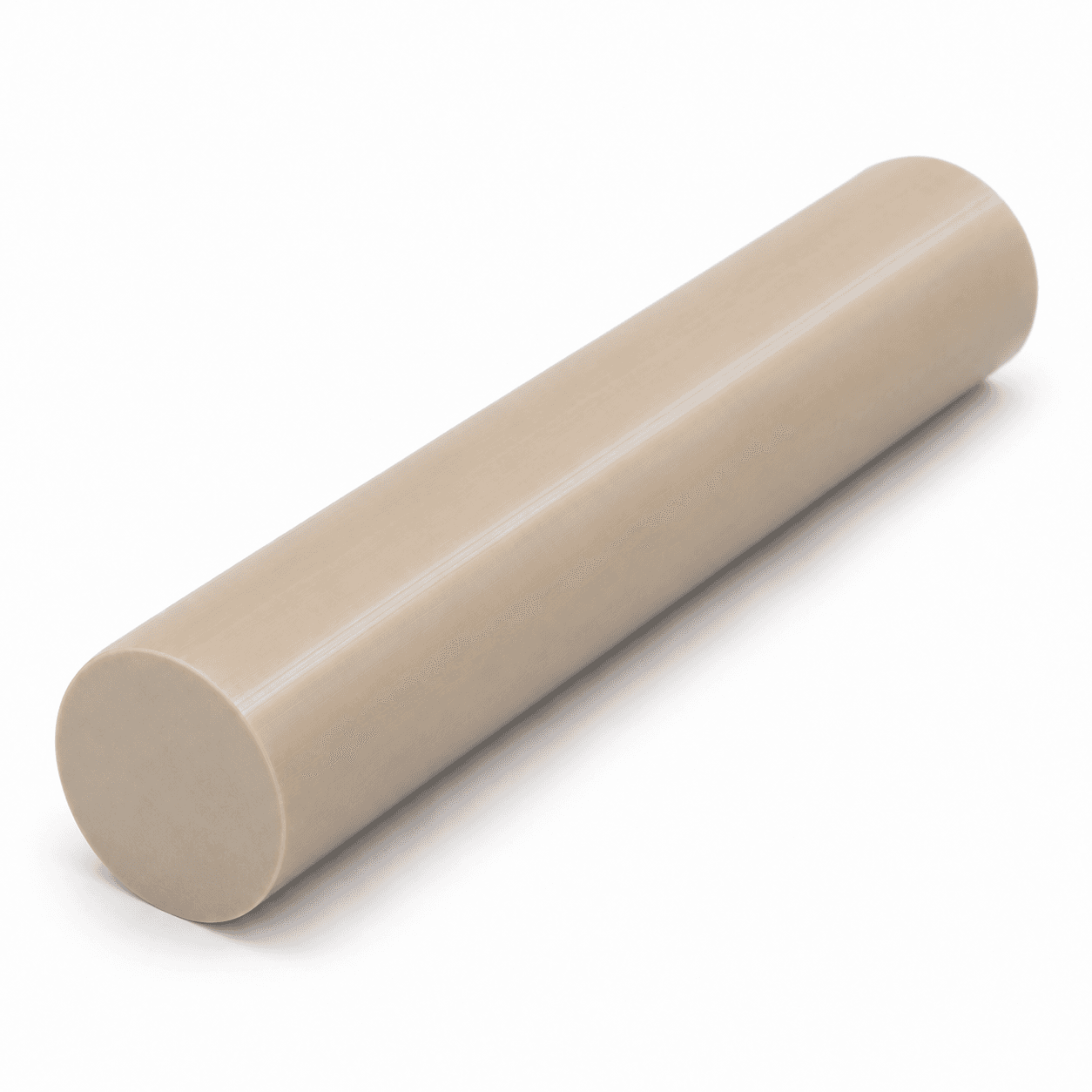

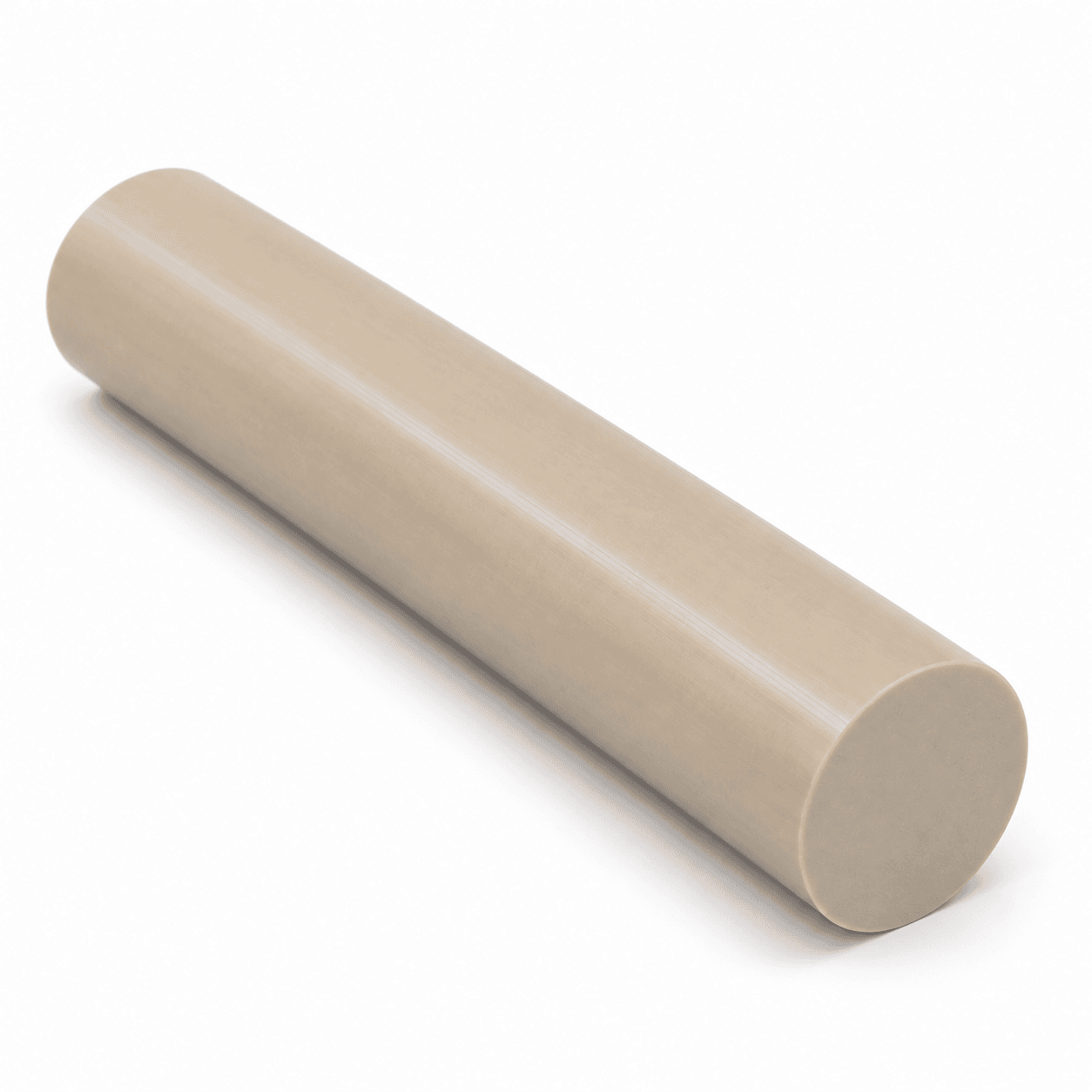

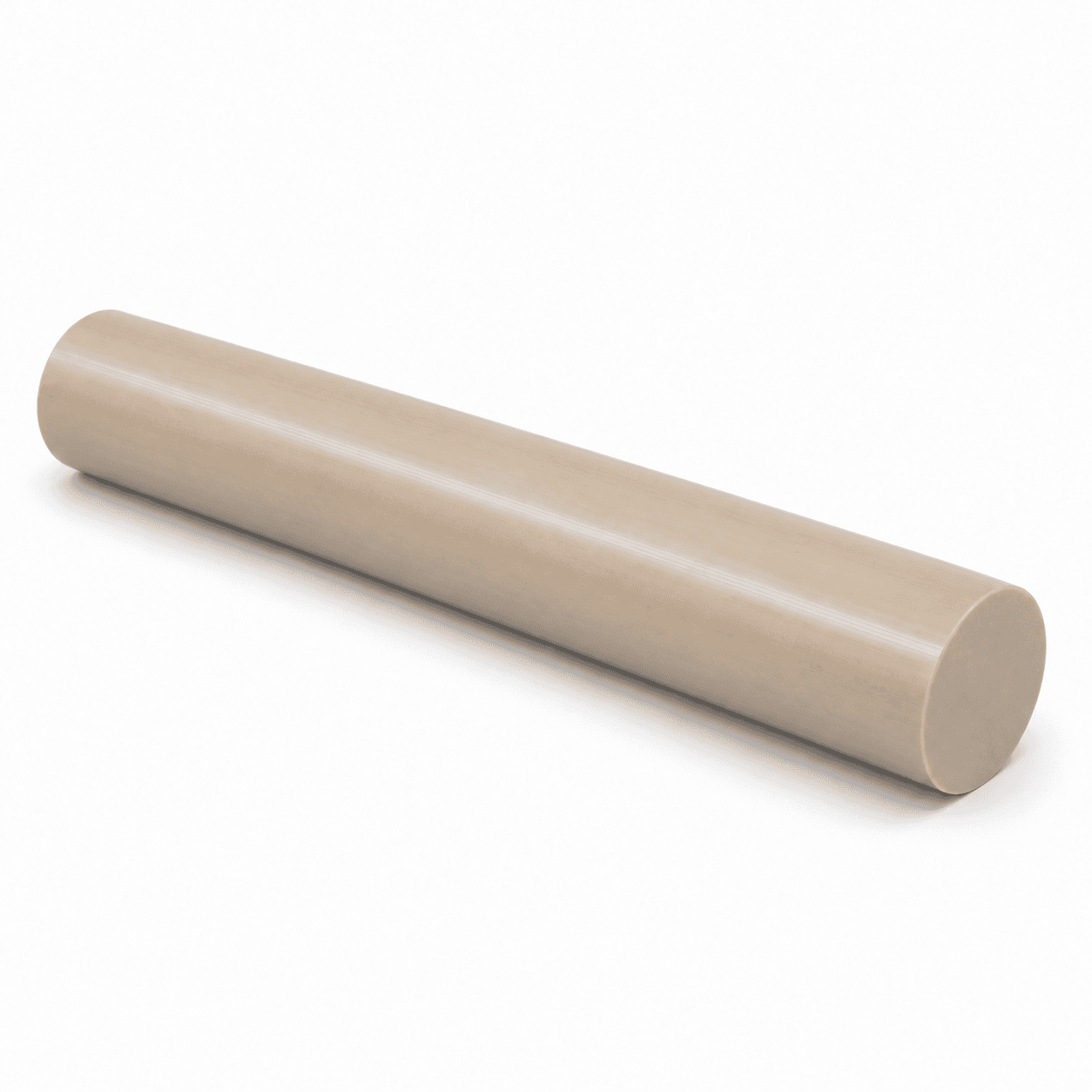

PEEK GF30 - 1.000" dia x 48 Natural Rod
48 in Rod
Same-day shipping available
Quality certified
Expert support
About This Product
PEEK GF30 rod in Natural is a 30% Glass Fiber Reinforced PEEK product measuring 1.0" diameter x 48" long, ideal for demanding structural and high-performance machining applications. The glass fiber reinforcement boosts stiffness and dimensional stability, while PEEK GF30 also delivers outstanding heat and chemical resistance for use in harsh operating environments.
Specifications
Shape
Rod
Length
48 inOuter Diameter
1 inPrice
$317.86 / Each
In Stock
21010 availableAvailable at 11 locations
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
Typical Properties — PEEK GF30 - 1.000" dia x 48 Natural Rod
Peek Gf30General
PropertyTest MethodUnitValue
DensityISO 1183g/cm³ / lb/in³1.51 / 0.054
Molding shrinkage (longitudinal)ISO%0.6
Molding shrinkage (transverse)ISO%1.2
Mechanical
PropertyTest MethodUnitValue
Tensile strengthISOMPa / psi181 / 26,000
Tensile modulusISOMPa / psi11100 / 1,609,000
Elongation at breakISO%2.8
Impact strength (Charpy)ISOkJ/m² / ft·lbf/in²64 / 30
Operating Environment
PropertyTest MethodUnitValue
Glass transition temp.—°C / °F143 / 285
Melting temperature—°C / °F343 / 645
Service temperature (short term)—°C / °F300 / 570
Service temperature (long term)—°C / °F260 / 500
Electrical
PropertyTest MethodUnitValue
Surface resistivityENΩ10¹³
Volume resistivityENΩ·cm10¹⁴
Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
