PEEK GF30RodNatural

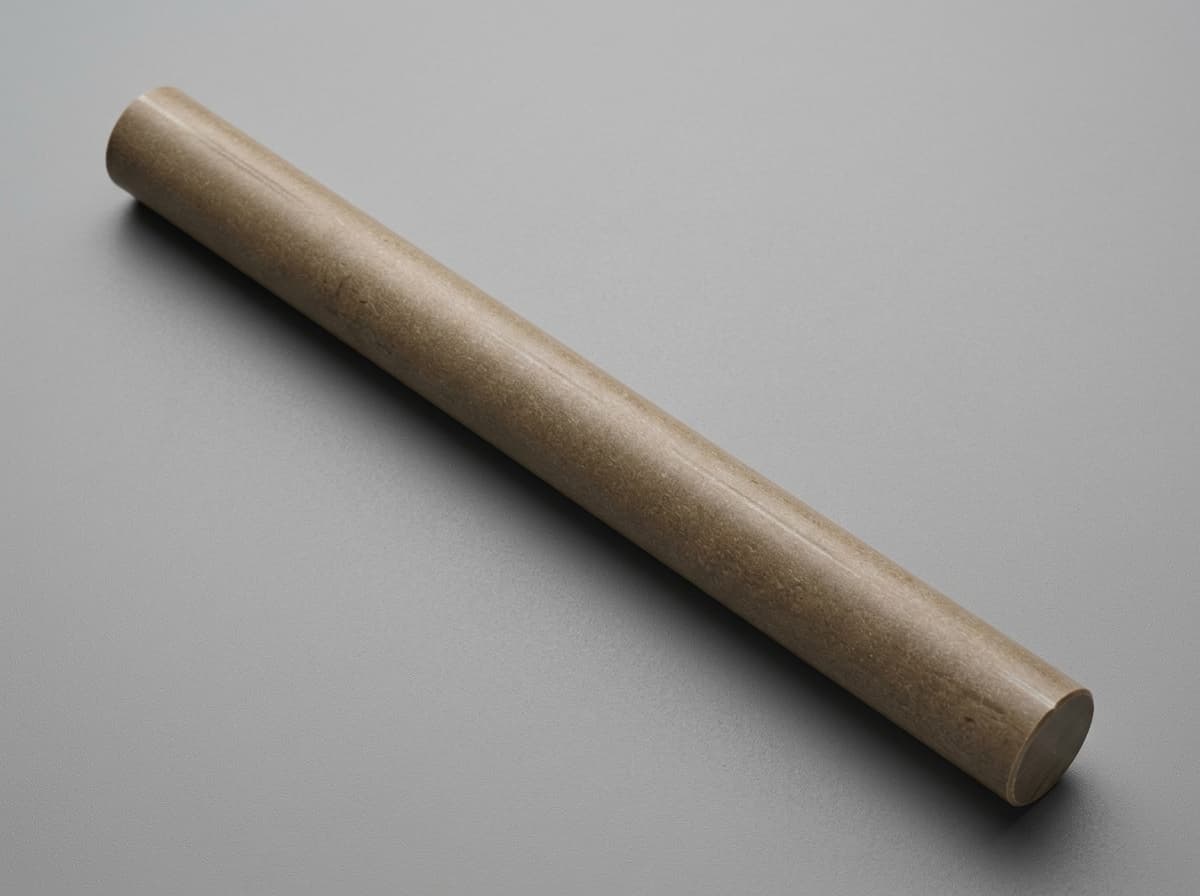

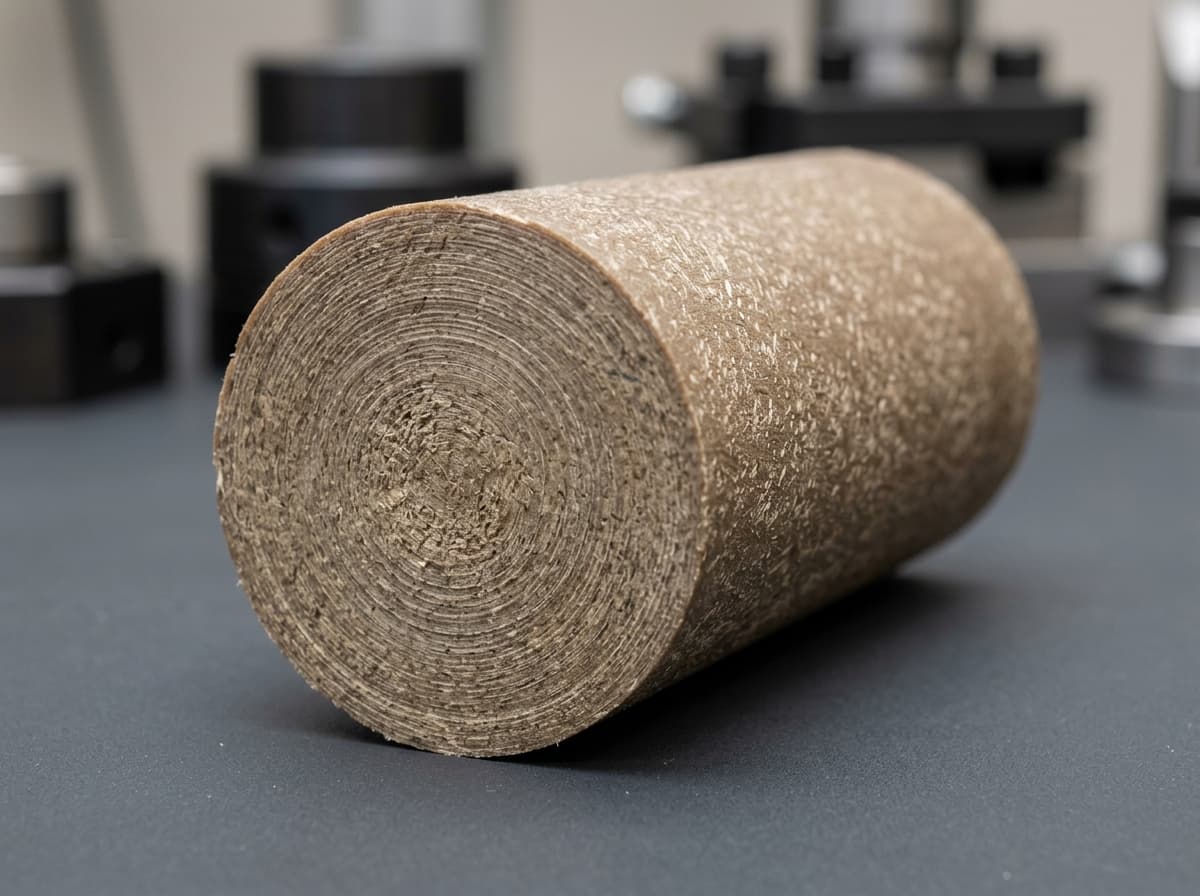

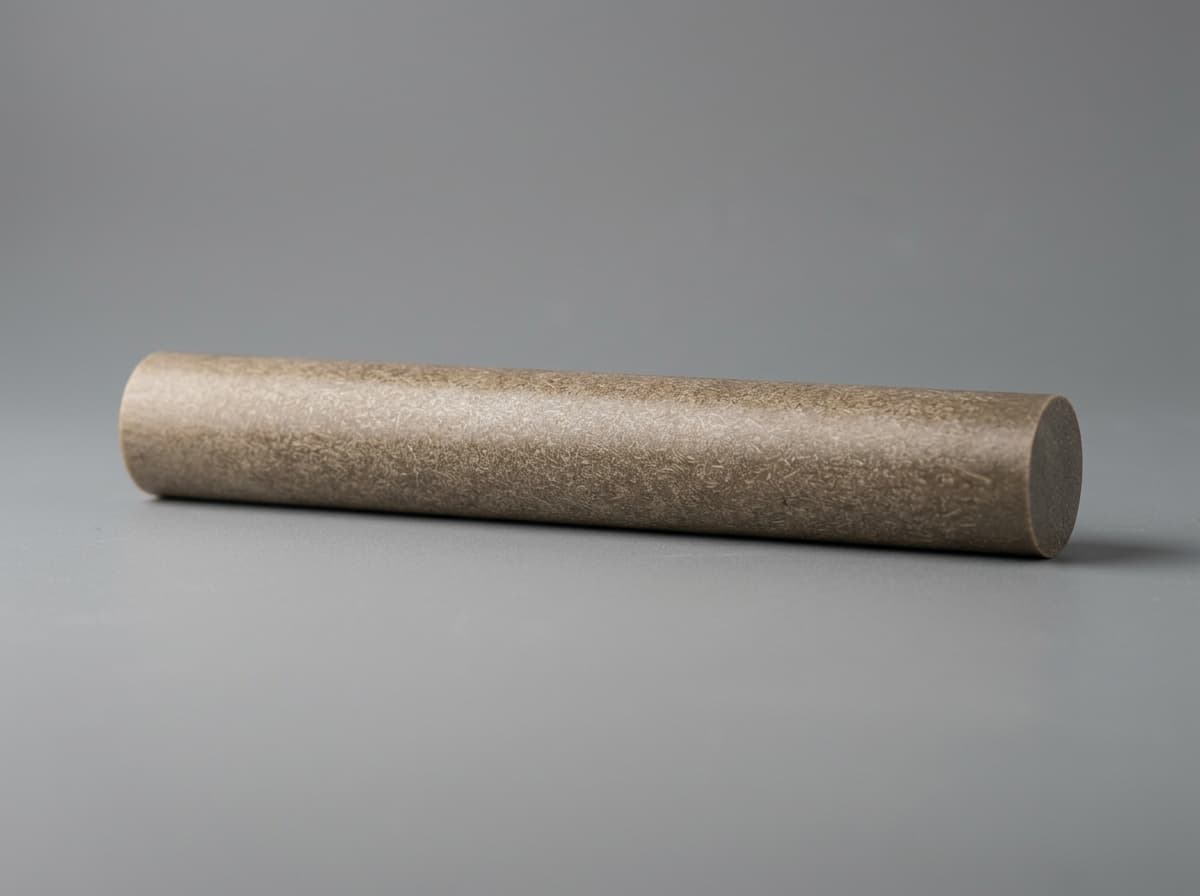

PEEK GF30 - 1.000" dia x 12 Natural Rod
12 in Rod
Same-day shipping available
Quality certified
Expert support
About This Product
PEEK GF30 rod in Natural is a 30% Glass Fiber Reinforced PEEK stock shape measuring 1.0" diameter x 12" long. This reinforced PEEK grade delivers excellent chemical and high-temperature resistance while the 30% glass fiber fill boosts stiffness, strength, and dimensional stability for demanding machined parts.
Specifications
Shape
Rod
Length
12 inOuter Diameter
1 inStarting at
$79.46
per Each
In Stock
21010 availableAvailable at 11 locations
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
Typical Properties — PEEK GF30 - 1.000" dia x 12 Natural Rod
Peek Gf30General
PropertyTest MethodUnitValue
DensityISO 1183g/cm³ / lb/in³1.51 / 0.054
Molding shrinkage (longitudinal)ISO%0.6
Molding shrinkage (transverse)ISO%1.2
Mechanical
PropertyTest MethodUnitValue
Tensile strengthISOMPa / psi181 / 26,000
Tensile modulusISOMPa / psi11100 / 1,609,000
Elongation at breakISO%2.8
Impact strength (Charpy)ISOkJ/m² / ft·lbf/in²64 / 30
Operating Environment
PropertyTest MethodUnitValue
Glass transition temp.—°C / °F143 / 285
Melting temperature—°C / °F343 / 645
Service temperature (short term)—°C / °F300 / 570
Service temperature (long term)—°C / °F260 / 500
Electrical
PropertyTest MethodUnitValue
Surface resistivityENΩ10¹³
Volume resistivityENΩ·cm10¹⁴
Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
