PEEKSheetBlack

PEEK - 1.000" 12 x 12 Black Sheet - 1 in × 12 in × 12 in Sheet

1 in × 12 in × 12 in Sheet

PEEK - 1.000" 12 x 12 Black SheetPEEK - 1.000" 12 x 12 Black Sheet - view 2PEEK - 1.000" 12 x 12 Black Sheet - view 3
Same-day shipping available
Quality certified
Expert support

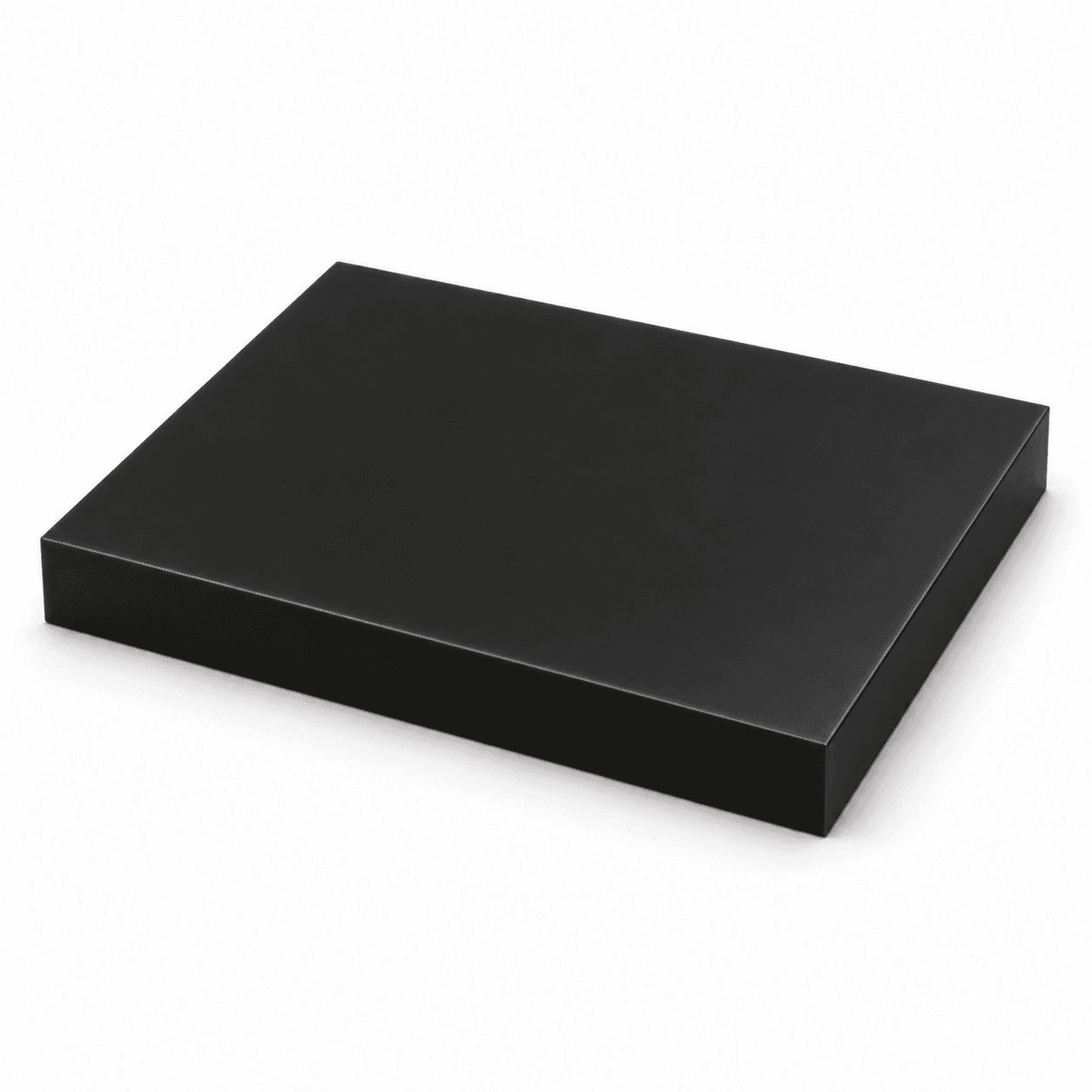

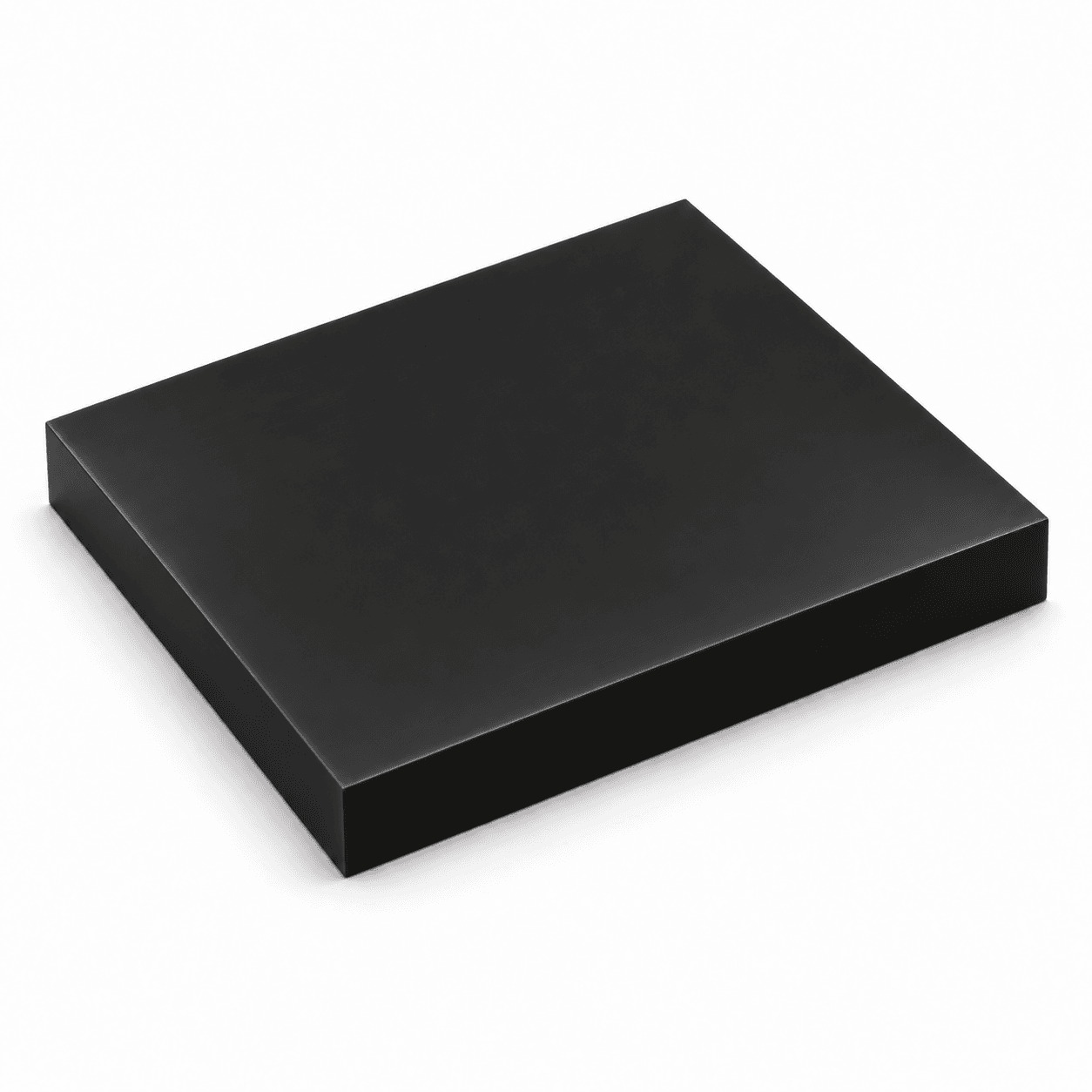

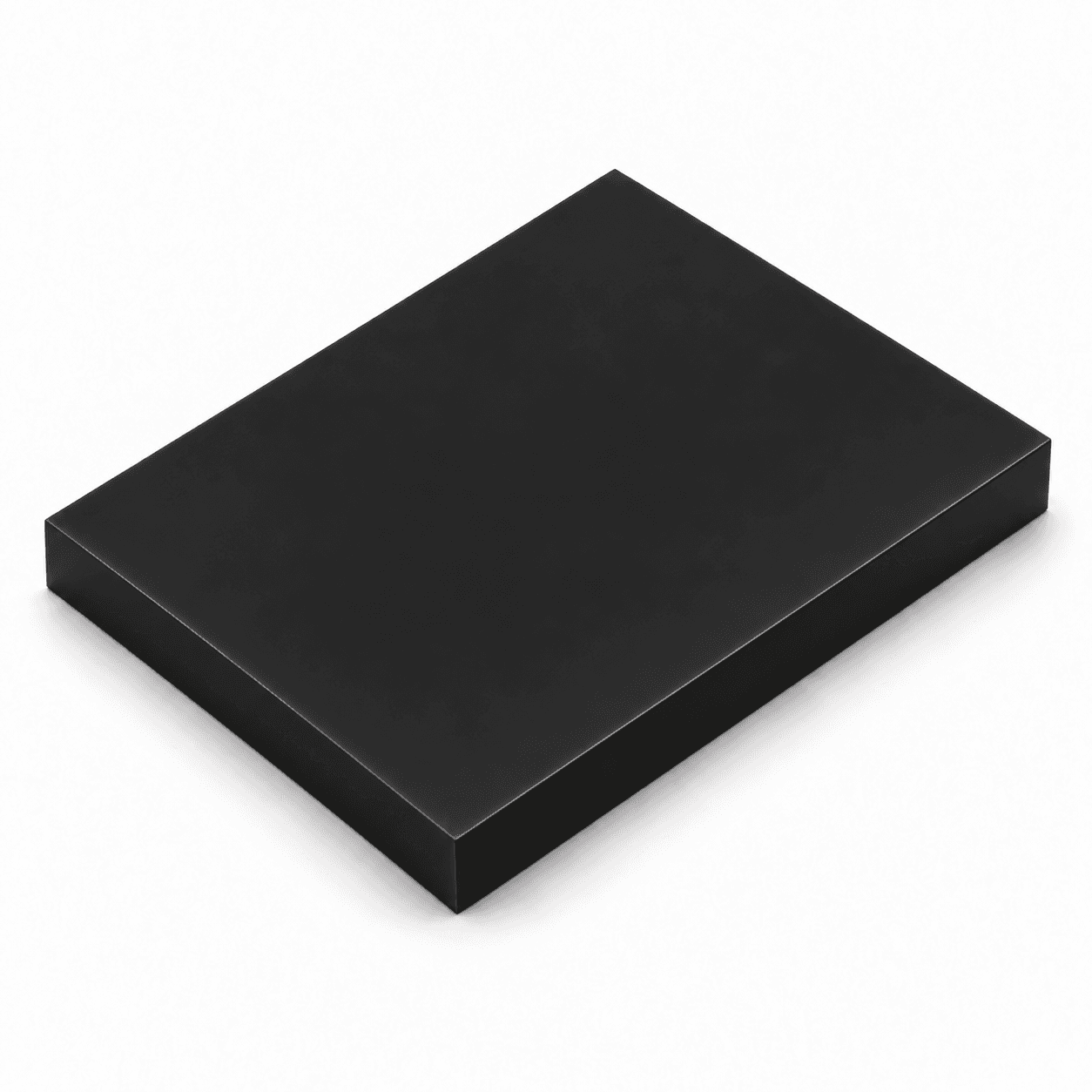

This PEEK sheet measures 1″ thick, 12″ × 12″, finished in black. Available to order — price $950.04 per Each.

SpecificationValueTolerance
Shape / FormSheet
Thickness1″Standard
Width12″Standard
Length12″Standard
ColorBlack
About This Product

PEEK (Polyether Ether Ketone) Black Sheet in a 1.0" thick, 12" length format delivers exceptional mechanical strength along with outstanding heat and chemical resistance for demanding industrial applications. This 12 x 12 sheet is an excellent choice for machined parts that require long-term dimensional stability, wear performance, and reliability in harsh environments.

Specifications

Shape

Sheet

Thickness

1 in

Width

12 in

Length

12 in

Color

Black

Unit of Measure

Each

Other PEEK sizes

← All PEEKstock & specs

Price

$950.04 / Each

In Stock
21010 available
Available at 11 locations
View PEEK Details
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
CategoryPEEK
FormSheet
Thickness1 in
Width12 in
Length12 in

Typical Properties — PEEK - 1.000" 12 x 12 Black Sheet

Peek
General
PropertyTest MethodUnitValue
DensityD792lb/in³ / g/cm³0.047 / 1.3
Water absorption (24 / 96 h immersion @ 73°F)ASTM D570mg / %5/10 / 0.06/0.12
Water absorption (Saturation in air @ 73°F, 50% RH)ASTM D570%0.20
Water absorption (Saturation in water @ 73°F)ASTM D570%0.45
Flammability rating (UL 94, 3 / 6 mm thickness)UL 94V-0/V-0
Mechanical
PropertyTest MethodUnitValue
Tensile strength (At yield / break)ASTM D638psi / MPa14,500 / 99
Tensile strain at breakASTM D638%15
Tensile modulusASTM D638psi / MPa566,000 / 3,900
Compressive stress (At 10% nominal strain)ASTM D695psi / MPa20,000 / 135
Izod impact (notched)ASTM D256ft·lb/in / J/m0.8 / 42
Rockwell hardnessASTM D785R120
Operating Environment
PropertyTest MethodUnitValue
Melting temperatureASTM D2133°F / °C640 / 335
Thermal conductivity (@ 73°F)ASTM C177Btu·in/ft²·h·°F / W/m·K1.7 / 0.24
Coefficient of thermal expansion (Avg. 73 – 140°F)ASTM D696μin/in/°F / μm/m/°C28 / 50
Coefficient of thermal expansion (Avg. 73 – 212°F)ASTM D696μin/in/°F / μm/m/°C28 / 50
Heat deflection temperature (264 psi (Method A))ASTM D648°F / °C320 / 160
Max service temperature (Short-term)°F / °C590 / 310
Max service temperature (Continuous (5,000 / 20,000 h))°F / °C480 / 245
Electrical
PropertyTest MethodUnitValue
Dielectric strengthASTM D149V/mil / kV/mm610 / 24
Volume resistivityASTM D257Ω·cm>10¹⁴
Surface resistivityASTM D257Ω>10¹³

Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
