PEEKSheetBlack
PEEK - 0.500" 24 x 48 Black Sheet - 0.5 in × 24 in × 48 in Sheet
0.5 in × 24 in × 48 in Sheet
Same-day shipping available
Quality certified
Expert support

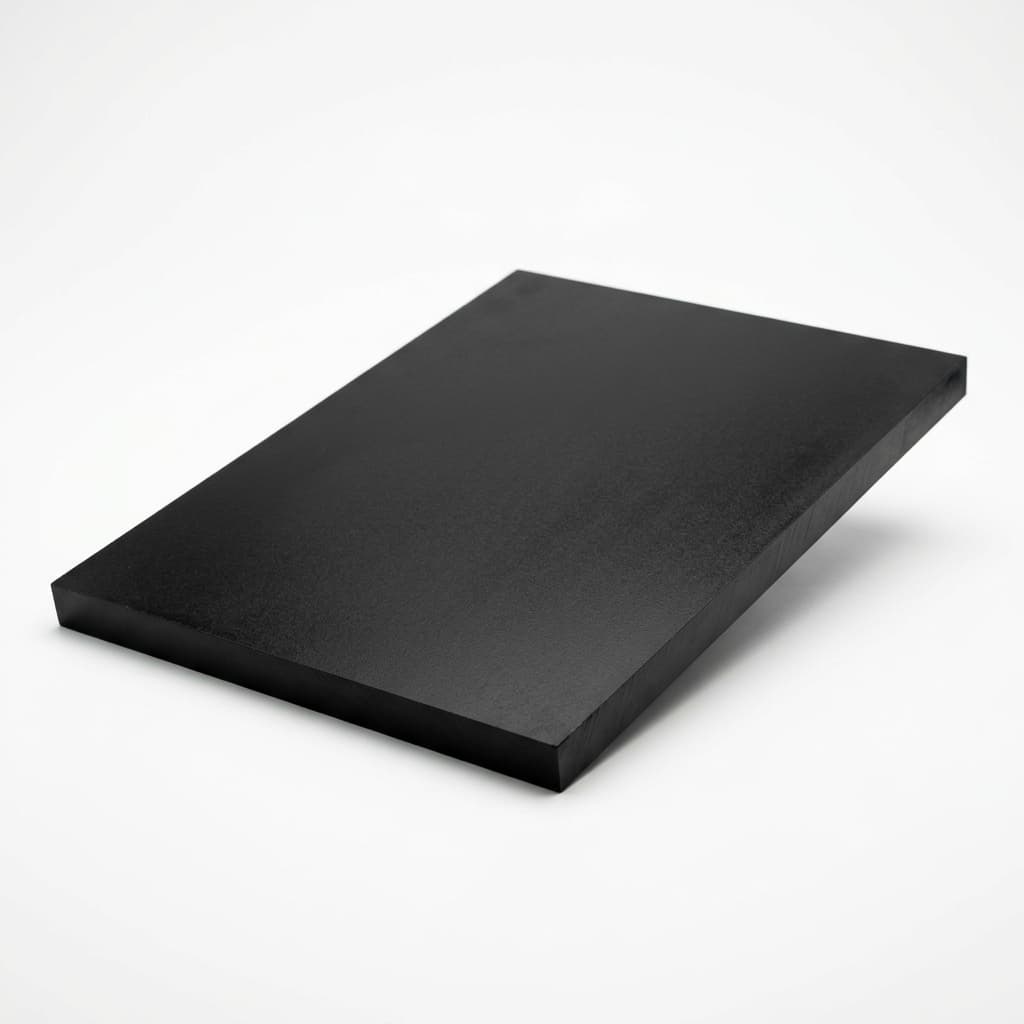

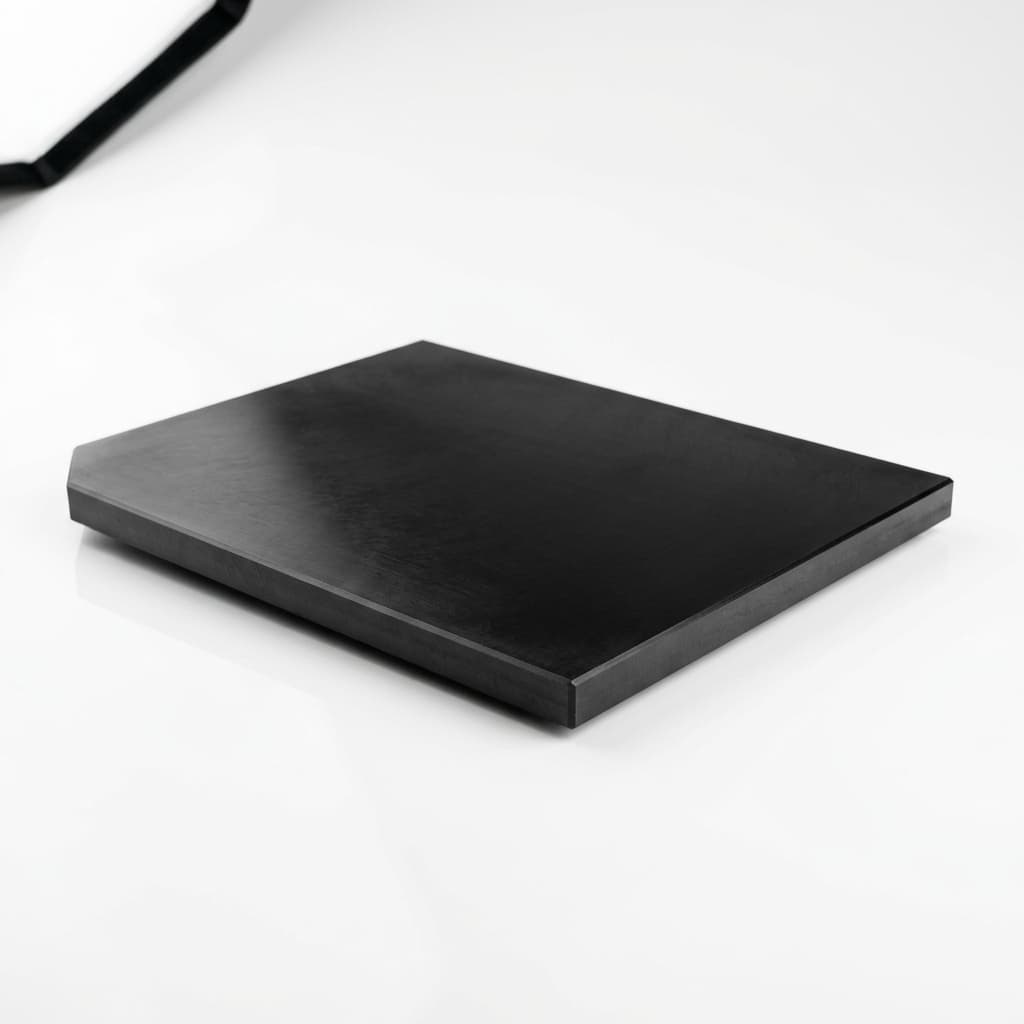

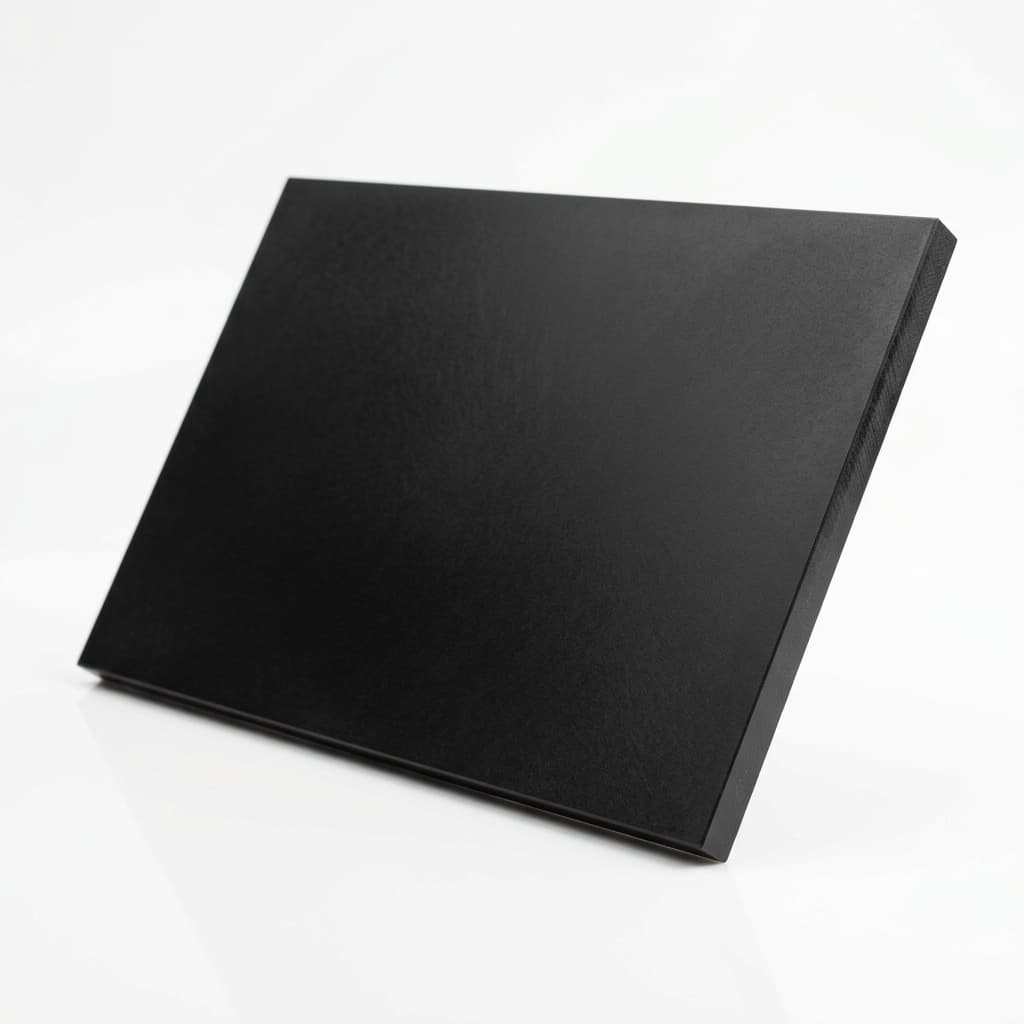

This PEEK sheet measures 0.5″ thick, 24″ × 48″, finished in black. Available to order — price $4111.55 per Each.
| Specification | Value | Tolerance |
|---|---|---|
| Shape / Form | Sheet | |
| Thickness | 0.5″ | Standard |
| Width | 24″ | Standard |
| Length | 48″ | Standard |
| Color | Black | |
About This Product
PEEK - 0.500" 24 x 48 Black Sheet is a high-performance Polyether Ether Ketone sheet measuring 0.5" thick and 48" length, ideal for demanding industrial and engineering applications. This Black PEEK sheet offers exceptional heat and chemical resistance, along with excellent mechanical strength and dimensional stability in harsh operating environments.
Specifications
Shape
Sheet
Thickness
0.5 inWidth
24 inLength
48 inColor
Black
Unit of Measure
Each
Other PEEK sizes
- PEEK - 1.000" x 120 Natural Rod — $380.32
- PEEK - 0.250" dia x 24 Natural Rod — $5.74
- PEEK - 1.000" 12 x 12 Black Sheet — $950.04
- PEEK - 1.750" 12 x 12 Black Sheet — $1260.26
- PEEK - 2.000" 24 x 48 Natural Plate — $9366.68
- PEEK - 0.750" x 120 Natural Rod — $214.13
- PEEK - 6.000" x 120 Natural Rod — $13411.22
- PEEK - 0.080" 12 x 12 Natural Sheet — $161.83
- PEEK - 0.375" 24 x 48 Natural Plate — $1844.09
- PEEK - 1.000" 24 x 48 Natural Plate — $4750.06
- PEEK - 0.040" 12 x 24 Natural Sheet — $163.73
- PEEK - 0.118" 24 x 48 Natural Sheet — $1.65
Price
$4111.55 / Each
In Stock
21010 availableAvailable at 11 locations
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
CategoryPEEK
FormSheet
Thickness0.5 in
Width24 in
Length48 in
Typical Properties — PEEK - 0.500" 24 x 48 Black Sheet
PeekGeneral
PropertyTest MethodUnitValue
DensityD792lb/in³ / g/cm³0.047 / 1.3
Water absorption (24 / 96 h immersion @ 73°F)ASTM D570mg / %5/10 / 0.06/0.12
Water absorption (Saturation in air @ 73°F, 50% RH)ASTM D570%0.20
Water absorption (Saturation in water @ 73°F)ASTM D570%0.45
Flammability rating (UL 94, 3 / 6 mm thickness)UL 94V-0/V-0
Mechanical
PropertyTest MethodUnitValue
Tensile strength (At yield / break)ASTM D638psi / MPa14,500 / 99
Tensile strain at breakASTM D638%15
Tensile modulusASTM D638psi / MPa566,000 / 3,900
Compressive stress (At 10% nominal strain)ASTM D695psi / MPa20,000 / 135
Izod impact (notched)ASTM D256ft·lb/in / J/m0.8 / 42
Rockwell hardnessASTM D785R120
Operating Environment
PropertyTest MethodUnitValue
Melting temperatureASTM D2133°F / °C640 / 335
Thermal conductivity (@ 73°F)ASTM C177Btu·in/ft²·h·°F / W/m·K1.7 / 0.24
Coefficient of thermal expansion (Avg. 73 – 140°F)ASTM D696μin/in/°F / μm/m/°C28 / 50
Coefficient of thermal expansion (Avg. 73 – 212°F)ASTM D696μin/in/°F / μm/m/°C28 / 50
Heat deflection temperature (264 psi (Method A))ASTM D648°F / °C320 / 160
Max service temperature (Short-term)°F / °C590 / 310
Max service temperature (Continuous (5,000 / 20,000 h))°F / °C480 / 245
Electrical
PropertyTest MethodUnitValue
Dielectric strengthASTM D149V/mil / kV/mm610 / 24
Volume resistivityASTM D257Ω·cm>10¹⁴
Surface resistivityASTM D257Ω>10¹³
Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
