PEEKSheetNatural

PEEK - 0.125" 24 x 48 Natural Sheet - 0.125 in × 24 in × 48 in Sheet

0.125 in × 24 in × 48 in Sheet

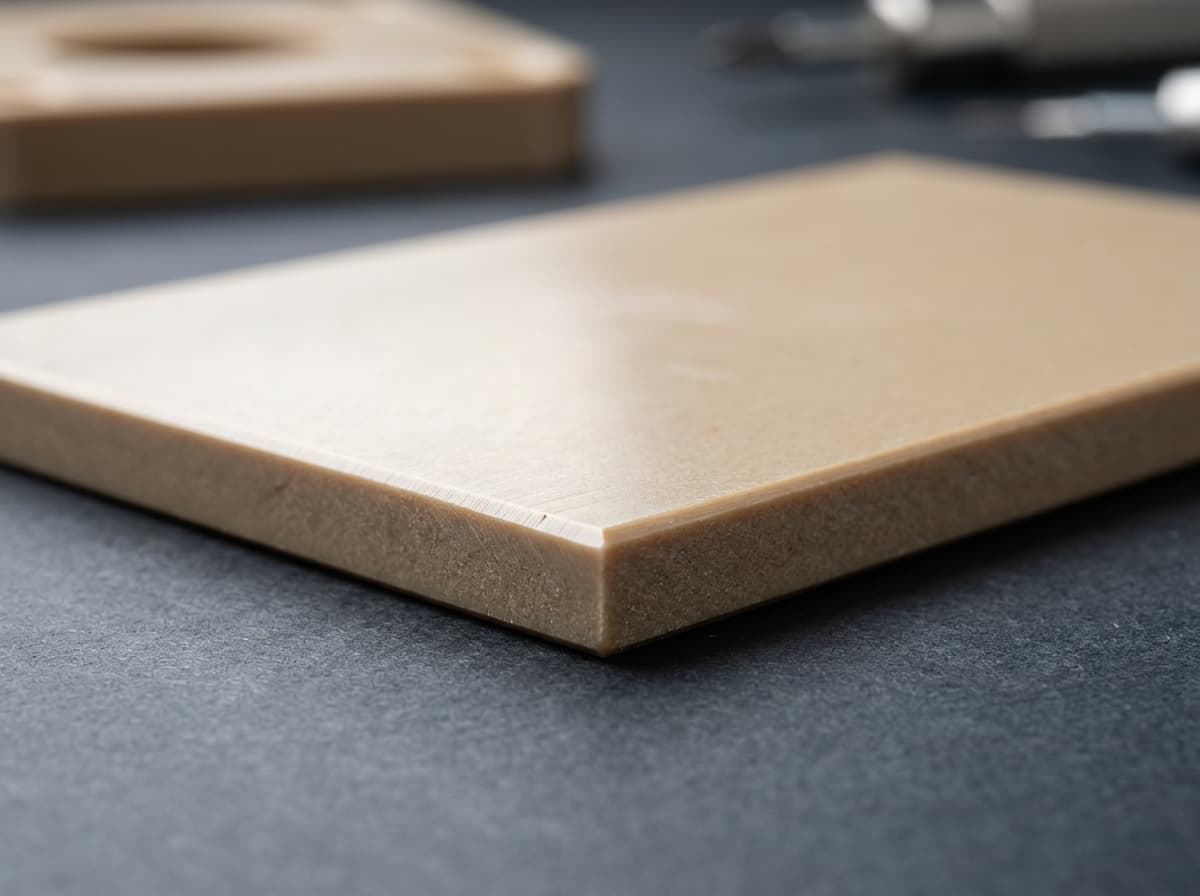

PEEK - 0.125" 24 x 48 Natural SheetPEEK - 0.125" 24 x 48 Natural Sheet - view 2PEEK - 0.125" 24 x 48 Natural Sheet - view 3
Same-day shipping available
Quality certified
Expert support

This PEEK sheet measures 0.125″ thick, 24″ × 48″, finished in natural. Available to order — price $2700.21 per Each.

SpecificationValueTolerance
Shape / FormSheet
Thickness0.125″Standard
Width24″Standard
Length48″Standard
ColorNatural
About This Product

PEEK - 0.125" 24 x 48 Natural Sheet is made from Polyether Ether Ketone, a high-performance thermoplastic known for exceptional heat and chemical resistance in demanding environments. This Natural sheet, measuring 0.125" thick and 48" length, is ideal for precision parts requiring excellent mechanical strength, dimensional stability, and long-term performance.

Specifications

Shape

Sheet

Thickness

0.125 in

Width

24 in

Length

48 in

Color

Natural

Unit of Measure

Each

Other PEEK sizes

← All PEEKstock & specs

Price

$2700.21 / Each

In Stock
21010 available
Available at 11 locations
View PEEK Details
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
CategoryPEEK
FormSheet
Thickness0.125 in
Width24 in
Length48 in

Typical Properties — PEEK - 0.125" 24 x 48 Natural Sheet

Peek
General
PropertyTest MethodUnitValue
DensityD792lb/in³ / g/cm³0.047 / 1.3
Water absorption (24 / 96 h immersion @ 73°F)ASTM D570mg / %5/10 / 0.06/0.12
Water absorption (Saturation in air @ 73°F, 50% RH)ASTM D570%0.20
Water absorption (Saturation in water @ 73°F)ASTM D570%0.45
Flammability rating (UL 94, 3 / 6 mm thickness)UL 94V-0/V-0
Mechanical
PropertyTest MethodUnitValue
Tensile strength (At yield / break)ASTM D638psi / MPa14,500 / 99
Tensile strain at breakASTM D638%15
Tensile modulusASTM D638psi / MPa566,000 / 3,900
Compressive stress (At 10% nominal strain)ASTM D695psi / MPa20,000 / 135
Izod impact (notched)ASTM D256ft·lb/in / J/m0.8 / 42
Rockwell hardnessASTM D785R120
Operating Environment
PropertyTest MethodUnitValue
Melting temperatureASTM D2133°F / °C640 / 335
Thermal conductivity (@ 73°F)ASTM C177Btu·in/ft²·h·°F / W/m·K1.7 / 0.24
Coefficient of thermal expansion (Avg. 73 – 140°F)ASTM D696μin/in/°F / μm/m/°C28 / 50
Coefficient of thermal expansion (Avg. 73 – 212°F)ASTM D696μin/in/°F / μm/m/°C28 / 50
Heat deflection temperature (264 psi (Method A))ASTM D648°F / °C320 / 160
Max service temperature (Short-term)°F / °C590 / 310
Max service temperature (Continuous (5,000 / 20,000 h))°F / °C480 / 245
Electrical
PropertyTest MethodUnitValue
Dielectric strengthASTM D149V/mil / kV/mm610 / 24
Volume resistivityASTM D257Ω·cm>10¹⁴
Surface resistivityASTM D257Ω>10¹³

Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
