G10RodNatural

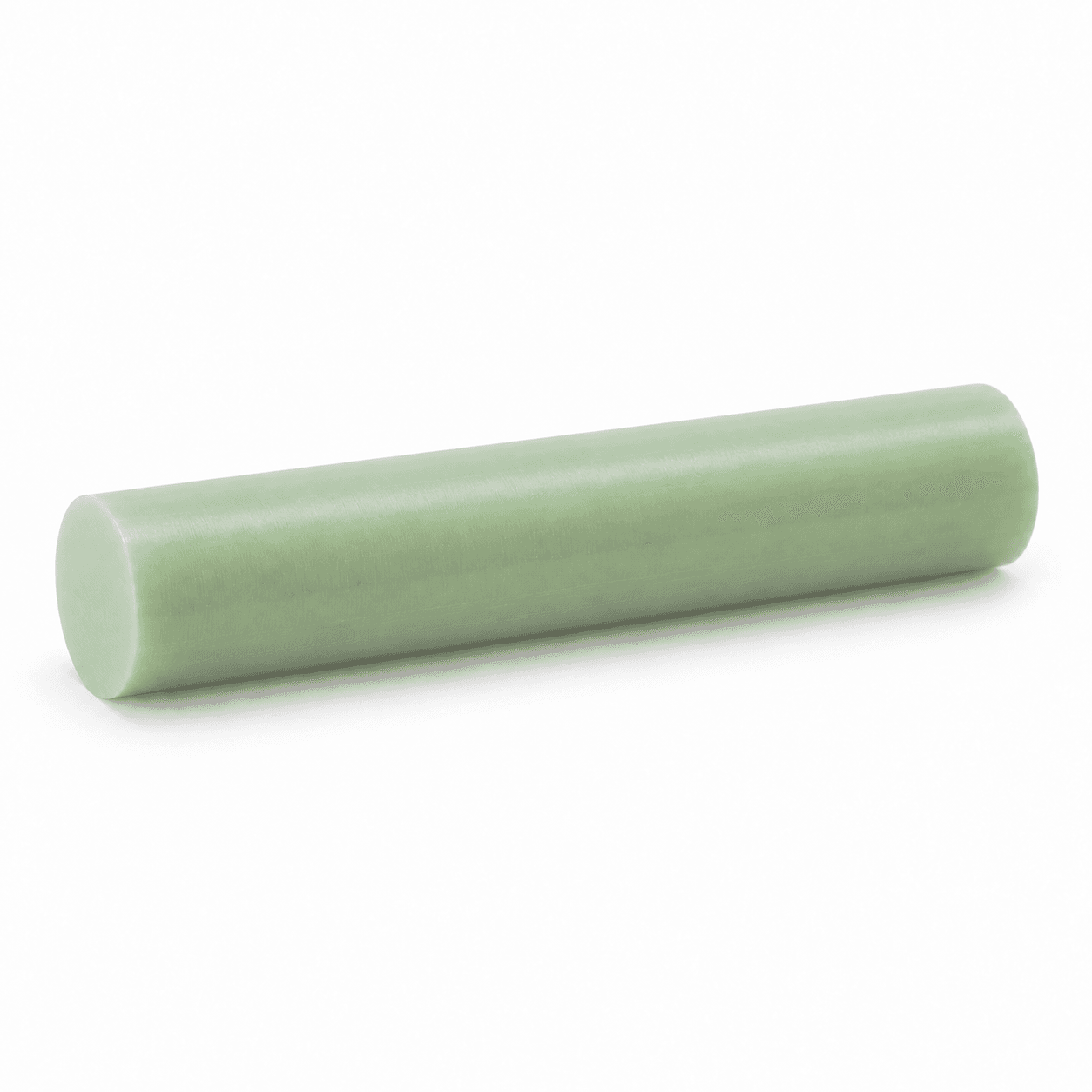

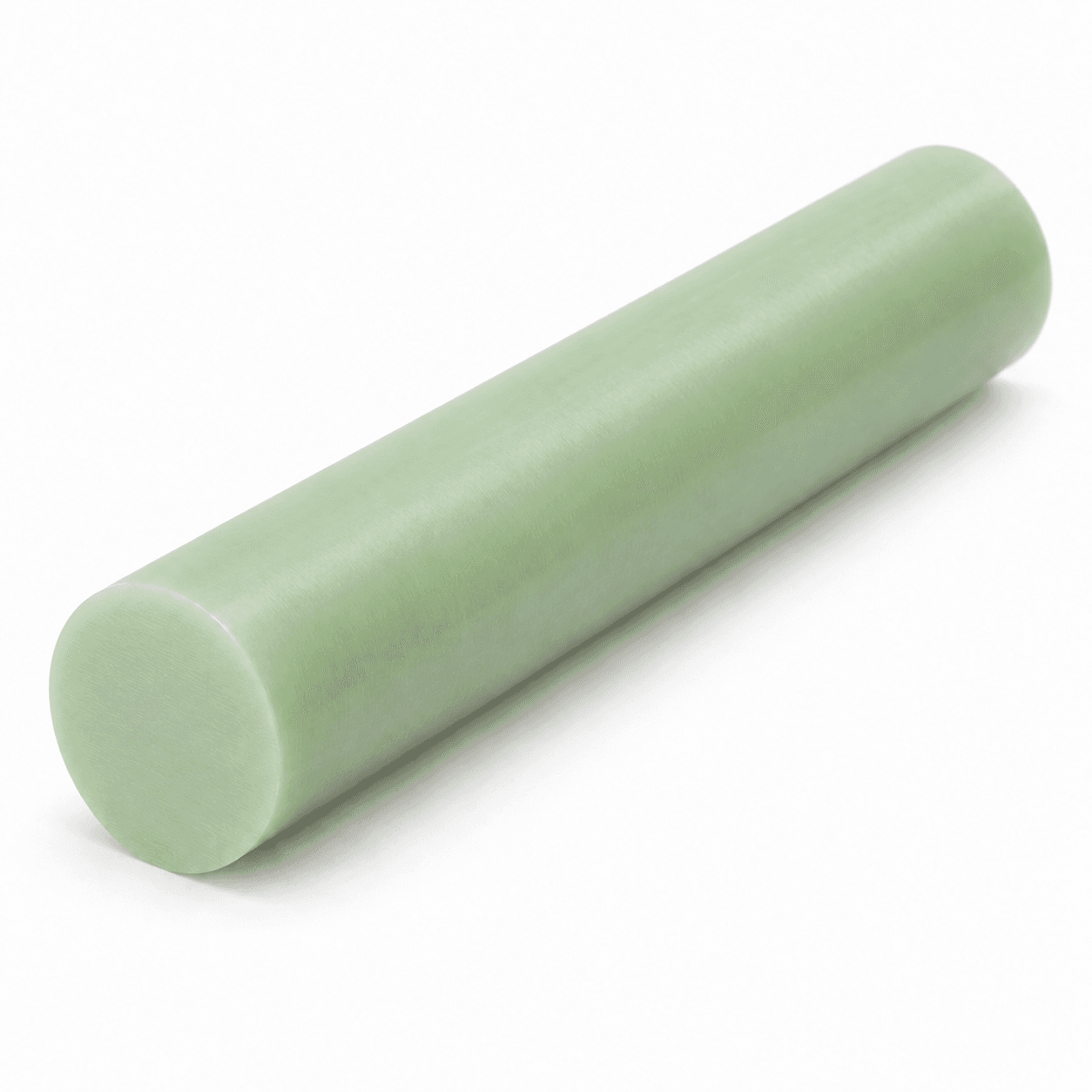

G10 - 3" dia x 48" Natural Rod
Same-day shipping available
Quality certified
Expert support
This G10 rod measures 3″ diameter × 48″ length, finished in natural. Available to order — price $1317.50 per Each.
| Specification | Value | Tolerance |
|---|---|---|
| Shape / Form | Rod | |
| Diameter | 3″ | ±0.003″ |
| Length | 48″ | Standard |
| Color | Natural | |
| Weight | 22.675 lbs | |
Specifications
Shape
Rod
Length
48 inOuter Diameter
3 in(±0.003 in)Weight
22.675 lbs
Color
Natural
Unit of Measure
Each
Other G10 sizes
- G10 - 0.375" dia x 48" Natural Rod — $39.03
- G10 - 0.062" 48 x 96 Natural Sheet — $215.95
- G10 - 0.625" dia x 48" Natural Rod — $89.62
- G10 - 3.125" 36 x 48 Natural Sheet — $4987.14
- G10 - 5.000" 36 x 48 Natural Sheet — $7737.26
- G10 - 2.75" dia x 48" Natural Rod — $1042.98
- G10 - 0.312" 36 x 48 Natural Sheet — $386.09
- G10 - 0.25" dia x 48" Natural Rod — $26.93
- G10 - 0.093" 48 x 96 Natural Sheet — $323.94
- G10 - 0.187" dia x 48" Natural Rod — $22.71
- G10 - 0.047" 48 x 96 Natural Sheet — $178.87
- G10 - 0.005" 36 x 48 Natural Sheet — $26.16
Price
$1317.50 / Each
In Stock
21010 availableAvailable at 11 locations
Orders under $150 include a $60 small-order charge
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
CategoryG10
FormRod
Length48 in
Outer Diameter3 in(±0.003 in)
Weight22.675 lbs
Typical Properties — G10 - 3" dia x 48" Natural Rod
Glass Epoxy G10Mechanical
PropertyTest MethodUnitValue
Tensile strengthpsi / MPa40,000 / 275
Compressive strengthpsi / MPa65,000 / 445
Flexural strength (LW -A 0.125″)psi / MPa75,000 / 515
Bond strengthpsi / MPa2,200 / 15
Shear strengthpsi / MPa19,000 / 130
Hardness (M scale)110
Izod impact strength at 49°C (LW)14.00
General
DescriptionValue
Specific gravity1.8
Flammability rating94HB
Water absorption (24 hours)0.11
Operating Environment
PropertyTest MethodUnitValue
Maximum temperature°C / °F140 / 280
Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
