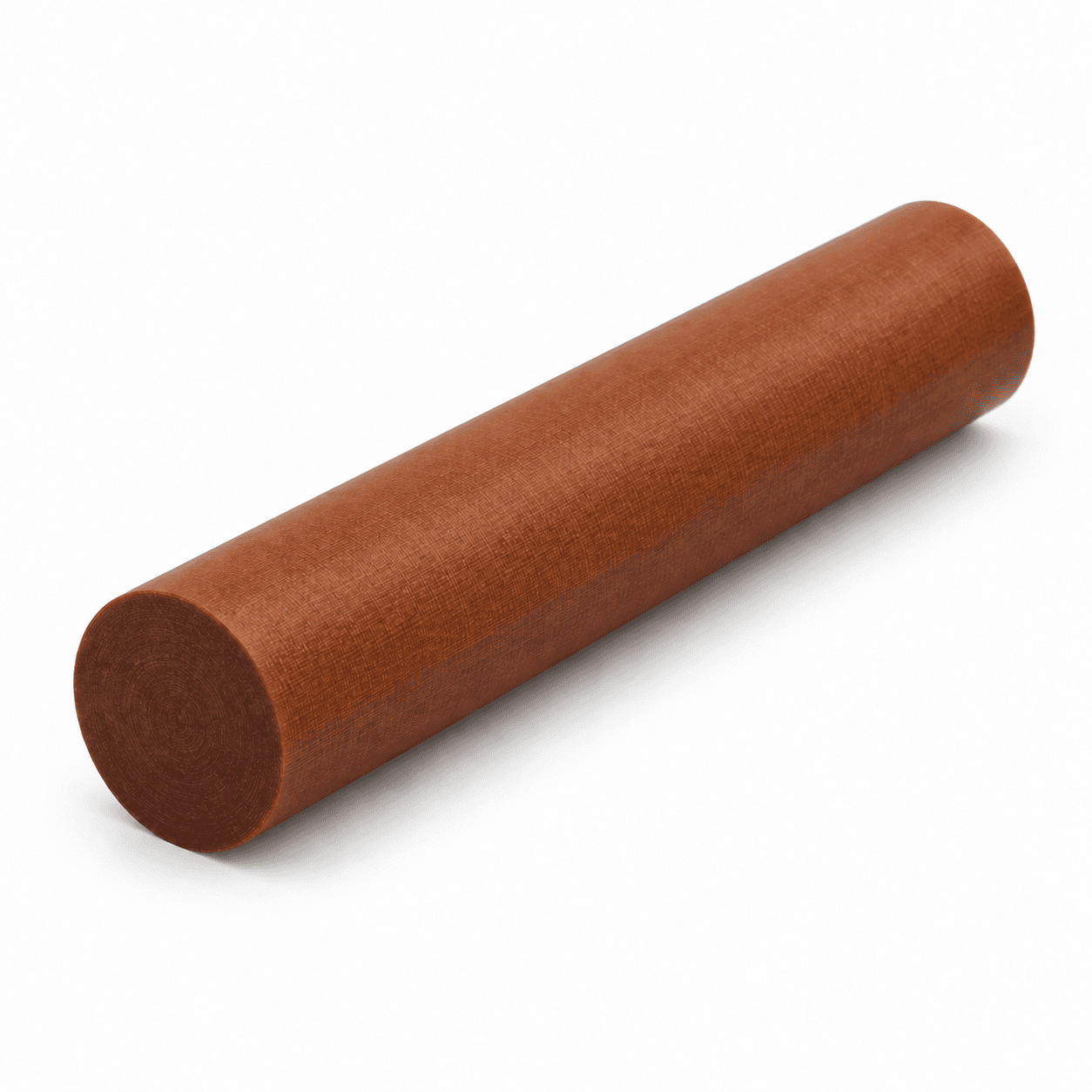

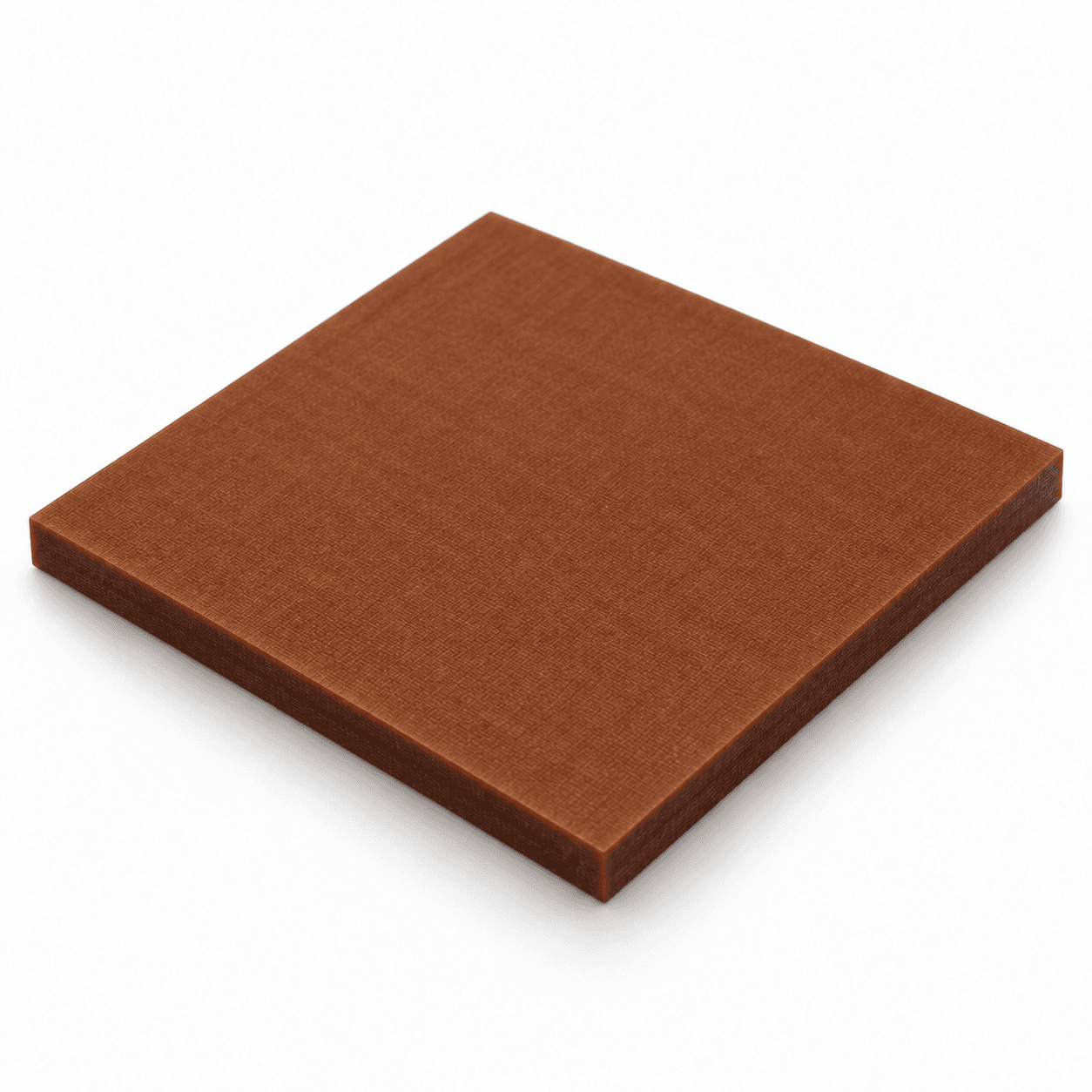

Glass phenolic is a family of woven-glass-fabric/phenolic-resin thermoset laminates defined by NEMA LI-1. These composites are manufactured by impregnating woven glass cloth with phenolic resin and curing under heat and pressure into rigid phenolic sheet and structural stock. Compared to paper-based phenolics, the woven glass reinforcement raises tensile strength substantially and improves dimensional stability under mechanical load. Ready Plastics stocks glass phenolic grade G-3, the standard NEMA designation in this family.
Glass phenolic laminates strike a practical balance between cost and performance. The glass cloth reinforcement provides strong mechanical integrity — up to 76,000 psi tensile strength in the G-3 grade — while the phenolic resin offers good chemical resistance and a maximum continuous service temperature of 140°C (280°F). These properties make glass phenolic a well-established choice for switchgear panels, terminal boards, insulating spacers, electrical enclosures, and structural components in industrial electrical systems. The glass phenolic grade also serves as a cost-effective stepping-stone to higher-performance epoxy grades when mechanical demands increase.
Standards and performance context. Glass phenolic grades meet NEMA LI-1 and are tested per ASTM D709. Moisture absorption is higher in phenolic grades than in glass epoxy alternatives — a consideration for applications in humid or wet environments. For superior moisture resistance and dielectric strength, glass epoxy grades (G-10, FR-4) are more appropriate. For arc and track resistance with flame retardance, glass melamine G-9 is the preferred option.
Related materials. Ready Plastics carries the full range of thermoset laminates: glass melamine for high-voltage arc-resistance, glass epoxy for moisture-critical and high-strength insulation, and glass silicone for extreme-temperature service. All glass-reinforced families are part of the broader thermoset laminates and phenolics lineup.
