Ready Plastics
PEI GF30SheetNatural

Ultem GF30 (PEI GF30) - 0.625" 12 x 12 Natural Sheet - 0.625 in × 12 in × 12 in Sheet

0.625 in × 12 in × 12 in Sheet

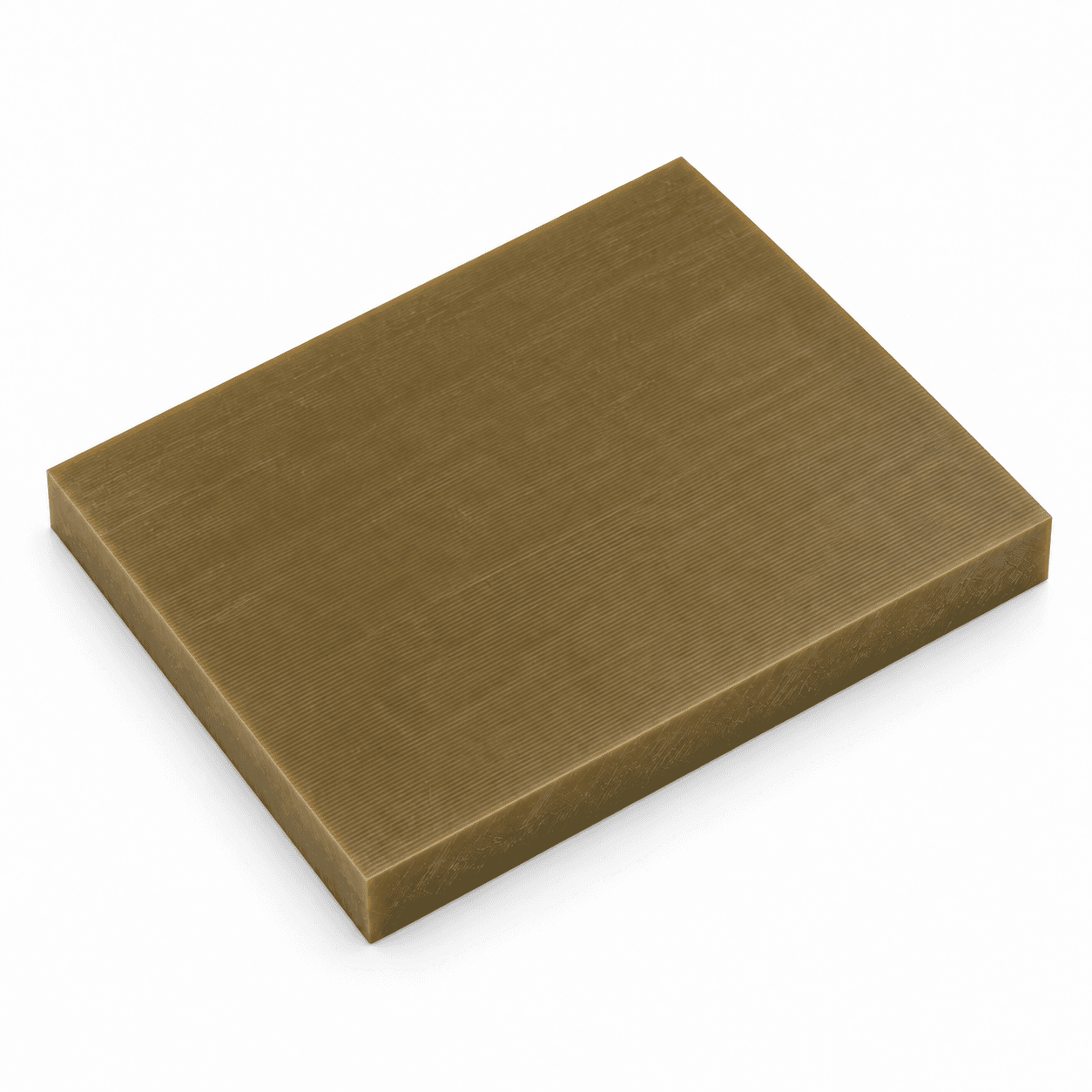

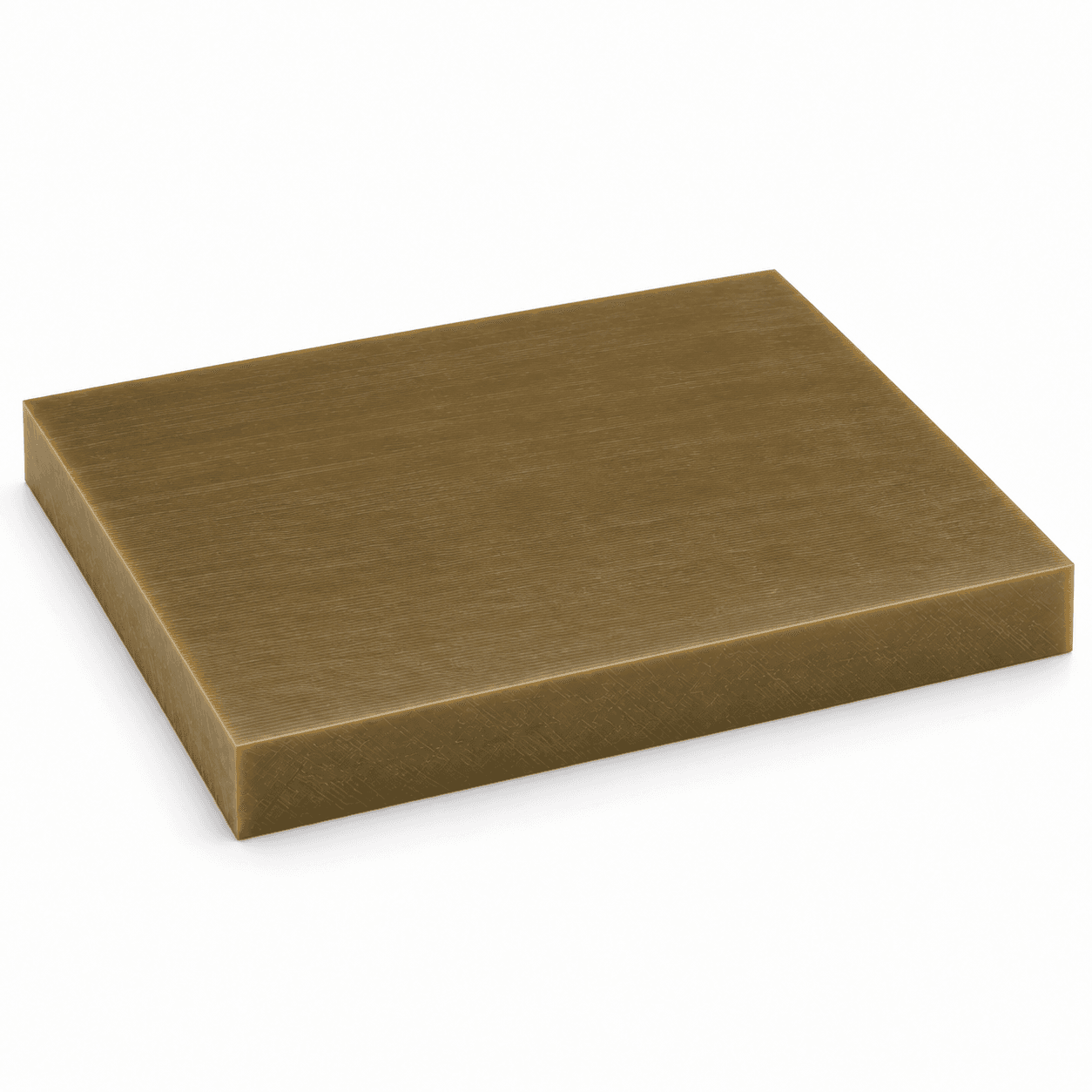

Ultem GF30 (PEI GF30) - 0.625" 12 x 12 Natural SheetUltem GF30 (PEI GF30) - 0.625" 12 x 12 Natural Sheet - view 2Ultem GF30 (PEI GF30) - 0.625" 12 x 12 Natural Sheet - view 3
Same-day shipping available
Quality certified
Expert support

This PEI GF30 sheet measures 0.625″ thick, 12″ × 12″, finished in natural. In stock — price $262.29 per Each.

SpecificationValueTolerance
Shape / FormSheet
Thickness0.625″Standard
Width12″Standard
Length12″Standard
ColorNatural
About This Product

Ultem GF30 (PEI GF30) sheet in Natural is made from 30% Glass Fiber Reinforced Polyetherimide and supplied in a 0.625" thick, 12" length format for demanding structural and high-heat applications. The GF30 reinforcement boosts stiffness, dimensional stability, and strength, making this sheet an excellent choice where rigid performance and reliable thermal resistance are required.

Specifications

Resin

Ultem GF30

Shape

Sheet

Thickness

0.625 in

Width

12 in

Length

12 in

Color

Natural

Unit of Measure

Each

Other PEI GF30 sizes

← All PEI GF30stock & specs

Price

$262.29 / Each

In Stock
21010 available
Available at 11 locations

Minimum order: 4 units

View PEI GF30 Details
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
ResinUltem GF30
CategoryPEI GF30
FormSheet
Thickness0.625 in
Width12 in
Length12 in

Typical Properties — Ultem GF30 (PEI GF30) - 0.625" 12 x 12 Natural Sheet

Pei Gf30
General
PropertyTest MethodUnitValue
DensityISO 1183g/cm³ / lb/in³1.51 / 0.054
Water absorption (24h / 96h (23°C))ISO%0.04 /
Operating Environment
PropertyTest MethodUnitValue
Flammability (UL 94) (corresponding to)IEC—V0
Glass transition temp.ISO°C / °F213 / 415
Service temperature (short term)—°C / °F200 / 390
Service temperature (long term)—°C / °F170 / 335
Mechanical
PropertyTest MethodUnitValue
Tensile strength (5mm/min)ISOMPa / psi135 / 19,500
Tensile modulus (1mm/min)ISOMPa / psi5300 / 768,000
Elongation at yield (5mm/min)ISO%4
Elongation at break (50mm/min)ISO%4
Flexural strength (2mm/min, 10 N)ISOMPa / psi195 / 28,000
Flexural modulus (2mm/min, 10 N)ISOMPa / psi5500 / 797,000
Impact strength (Charpy) (max. 7,5J)ISOkJ/m² / ft·lbf/in²51 / 24
Ball indentation hardnessISOMPa / psi325 / 47,000
Electrical
PropertyTest MethodUnitValue
Surface resistivity—Ω10¹⁴
Volume resistivity—Ω·cm10¹⁴

Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
