PEI GF30SheetBlack
Ultem GF30 (PEI GF30) - 0.500" 24 x 48 Black Sheet - 0.5 in × 24 in × 48 in Sheet
0.5 in × 24 in × 48 in Sheet
Same-day shipping available
Quality certified
Expert support

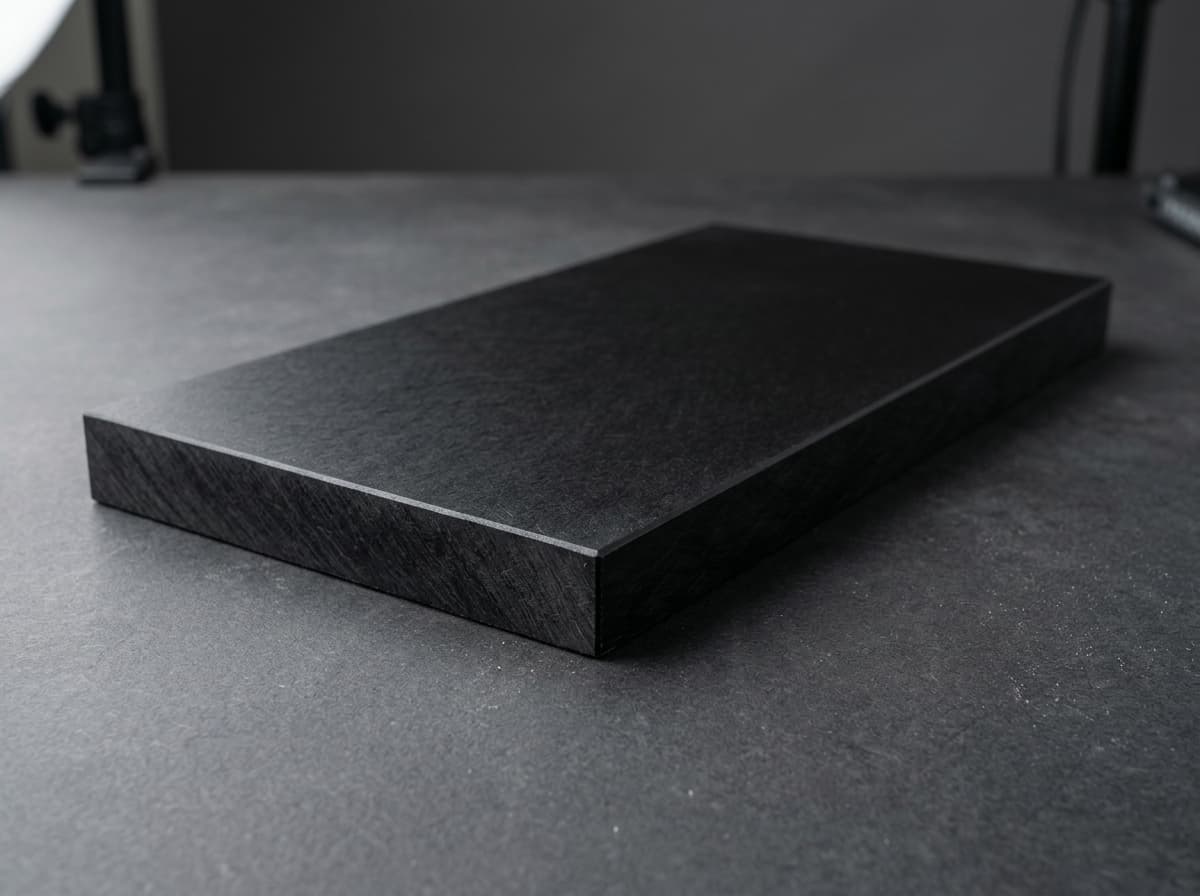

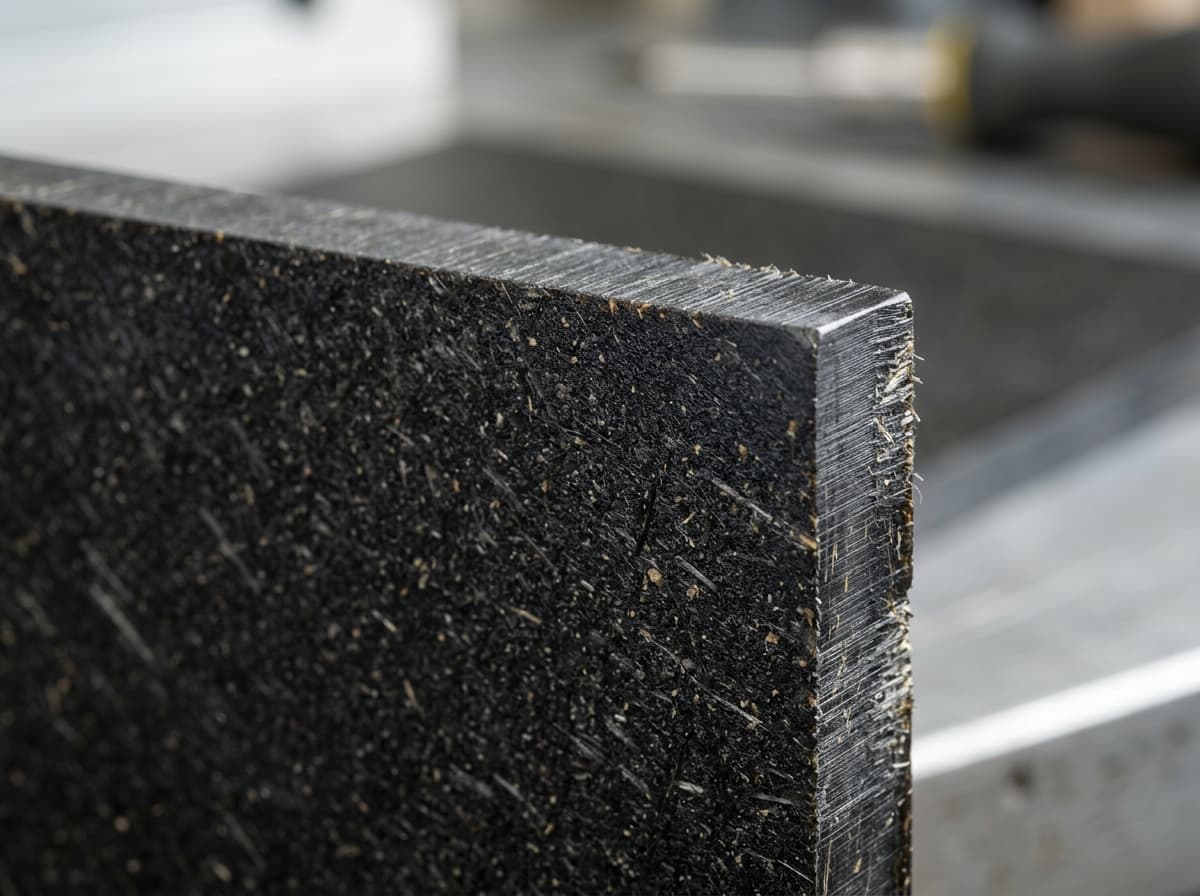

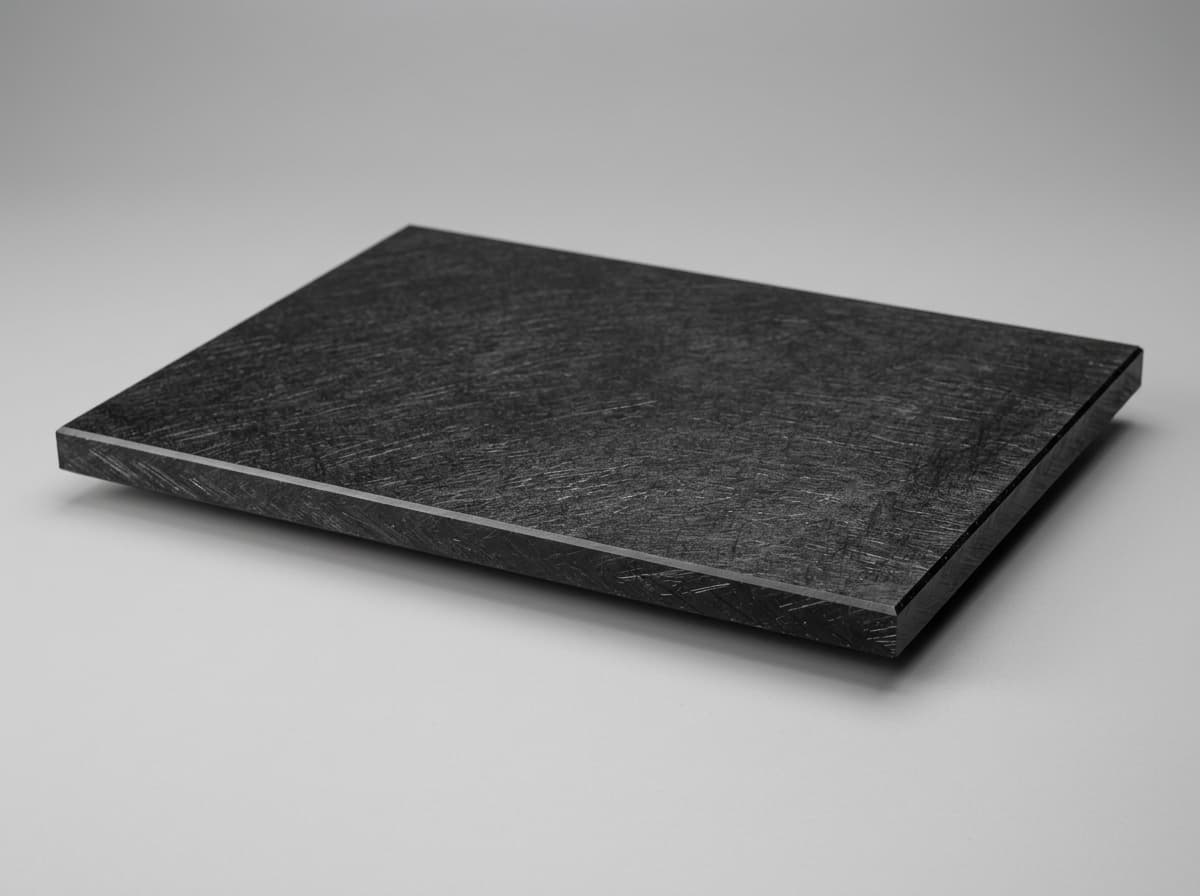

This PEI GF30 sheet measures 0.5″ thick, 24″ × 48″, finished in black. In stock — price $3032.46 per Each.
| Specification | Value | Tolerance |
|---|---|---|
| Shape / Form | Sheet | |
| Thickness | 0.5″ | Standard |
| Width | 24″ | Standard |
| Length | 48″ | Standard |
| Color | Black | |
About This Product
Ultem GF30 (PEI GF30) Black sheet is a 30% Glass Fiber Reinforced Polyetherimide material engineered for demanding structural and high-heat applications. This 0.5" thick, 48" length sheet delivers enhanced stiffness, improved dimensional stability, and reliable performance where standard unfilled PEI may fall short.
Specifications
Resin
Ultem GF30
Shape
Sheet
Thickness
0.5 inWidth
24 inLength
48 inColor
Black
Unit of Measure
Each
Other PEI GF30 sizes
- Ultem GF30 (PEI GF30) - 1.000" dia x 120 Natural Rod — $392.53
- Ultem GF30 (PEI GF30) - 0.375" dia x 120 Natural Rod — $82.11
- Ultem GF30 (PEI GF30) - 0.375" 12 x 48 Natural Sheet — $832.24
- Ultem GF30 (PEI GF30) - 0.750" dia x 120 Natural Rod — $219.30
- Ultem GF30 (PEI GF30) - 1.750" dia x 120 Natural Rod — $1199.69
- Ultem GF30 (PEI GF30) - 1.000" 12 x 12 Black Sheet — $491.60
- Ultem GF30 (PEI GF30) - 0.750" 12 x 12 Natural Sheet — $416.08
- Ultem GF30 (PEI GF30) - 1.000" 12 x 24 Natural Sheet — $1199.55
- Ultem GF30 (PEI GF30) - 2.000" dia x 96 Black Rod — $115.23
- Ultem GF30 (PEI GF30) - 0.500" dia x 84 Natural Rod — $42.73
- Ultem GF30 (PEI GF30) - 1.000" dia x 60 Natural Rod — $196.26
- Ultem GF30 (PEI GF30) - 2.000" dia x 120 Natural Rod — $1557.37
Price
$3032.46 / Each
In Stock
21010 availableAvailable at 11 locations
$150 order minimum
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
ResinUltem GF30
CategoryPEI GF30
FormSheet
Thickness0.5 in
Width24 in
Length48 in
Typical Properties — Ultem GF30 (PEI GF30) - 0.500" 24 x 48 Black Sheet
Pei Gf30General
PropertyTest MethodUnitValue
DensityISO 1183g/cm³ / lb/in³1.51 / 0.054
Water absorption (24h / 96h (23°C))ISO%0.04 /
Operating Environment
PropertyTest MethodUnitValue
Flammability (UL 94) (corresponding to)IEC—V0
Glass transition temp.ISO°C / °F213 / 415
Service temperature (short term)—°C / °F200 / 390
Service temperature (long term)—°C / °F170 / 335
Mechanical
PropertyTest MethodUnitValue
Tensile strength (5mm/min)ISOMPa / psi135 / 19,500
Tensile modulus (1mm/min)ISOMPa / psi5300 / 768,000
Elongation at yield (5mm/min)ISO%4
Elongation at break (50mm/min)ISO%4
Flexural strength (2mm/min, 10 N)ISOMPa / psi195 / 28,000
Flexural modulus (2mm/min, 10 N)ISOMPa / psi5500 / 797,000
Impact strength (Charpy) (max. 7,5J)ISOkJ/m² / ft·lbf/in²51 / 24
Ball indentation hardnessISOMPa / psi325 / 47,000
Electrical
PropertyTest MethodUnitValue
Surface resistivity—Ω10¹⁴
Volume resistivity—Ω·cm10¹⁴
Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
