Ready Plastics
PEIRodNatural

Ultem 1000 (PEI) - 0.375" dia x 120 Natural Rod

About this product

Ultem 1000 (PEI) rod is a Natural Polyetherimide stock shape measuring 0.375" diameter x 120" long, ideal for precision-machined parts that require strength and consistency. This high-performance PEI material offers excellent heat deflection, inherent flame resistance, and reliable dimensional stability for demanding electrical, aerospace, and industrial applications.

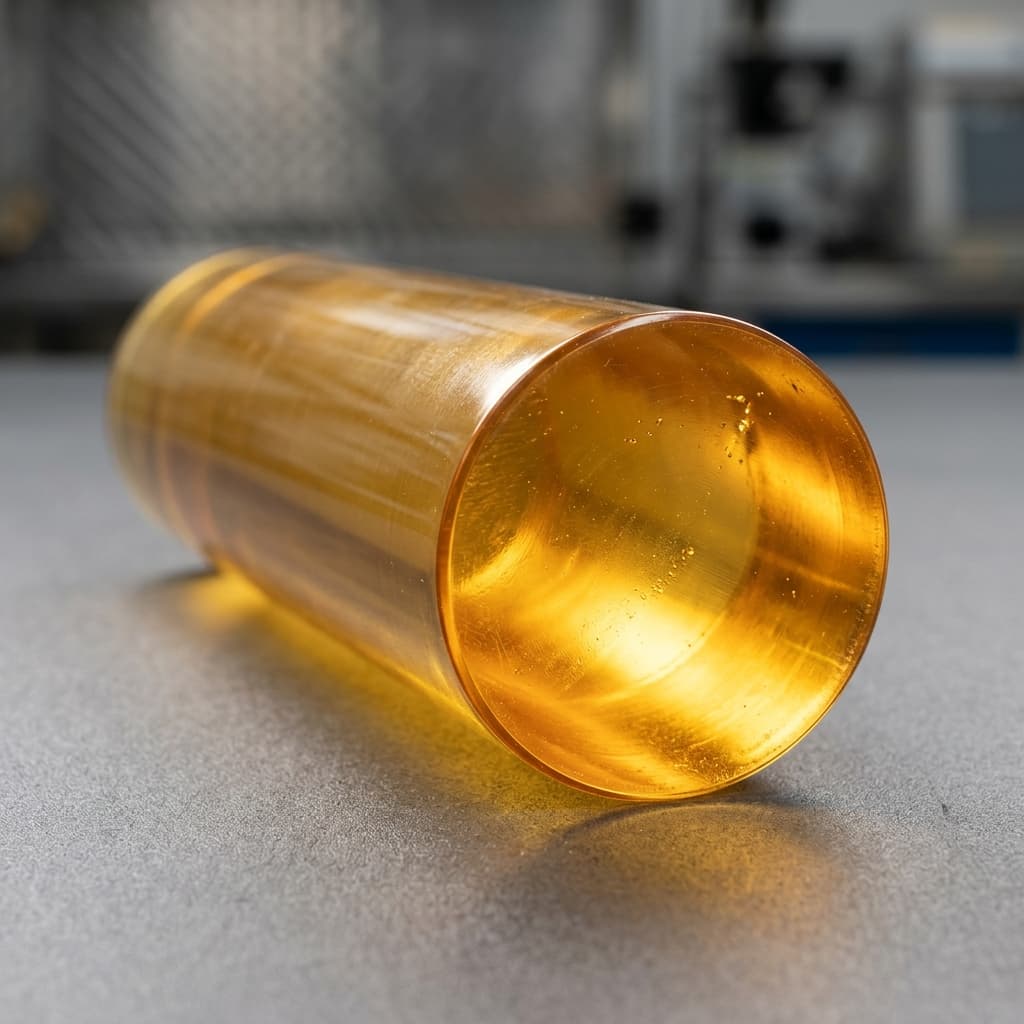

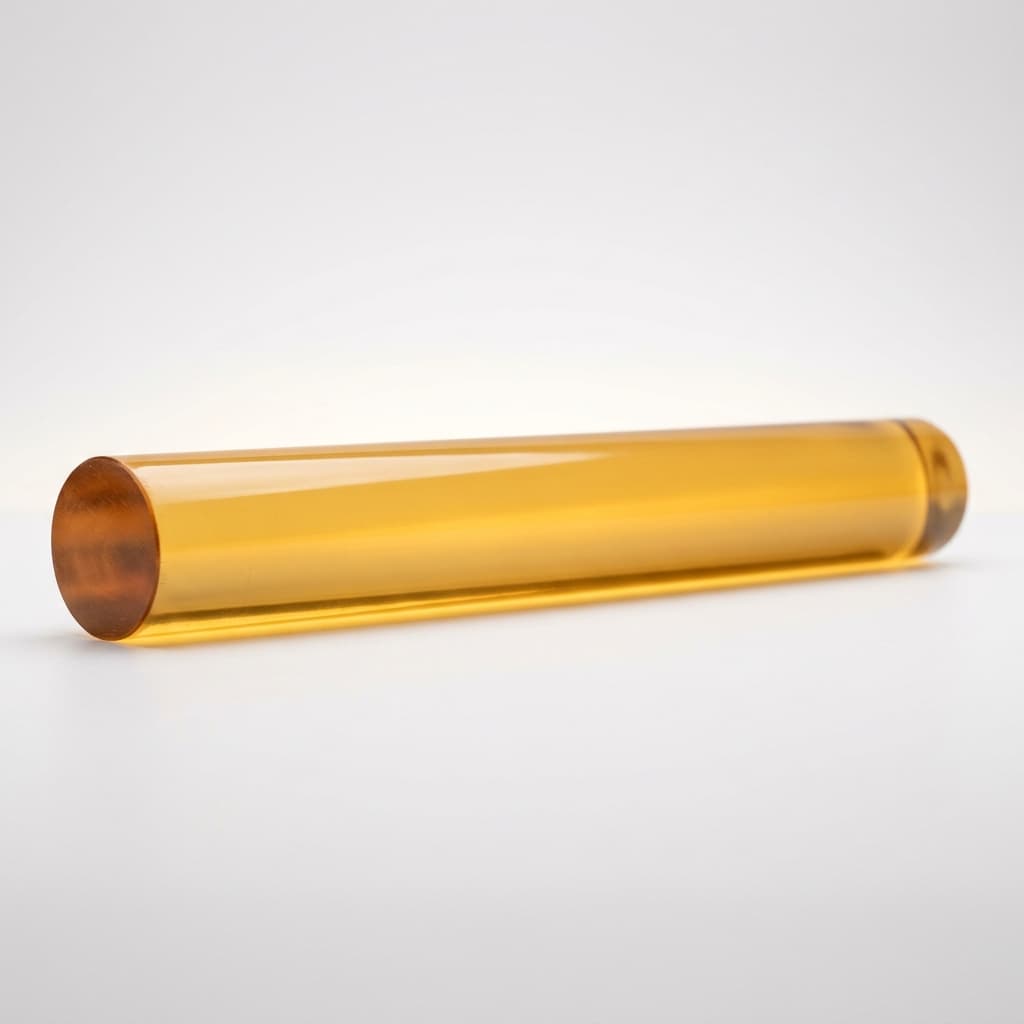

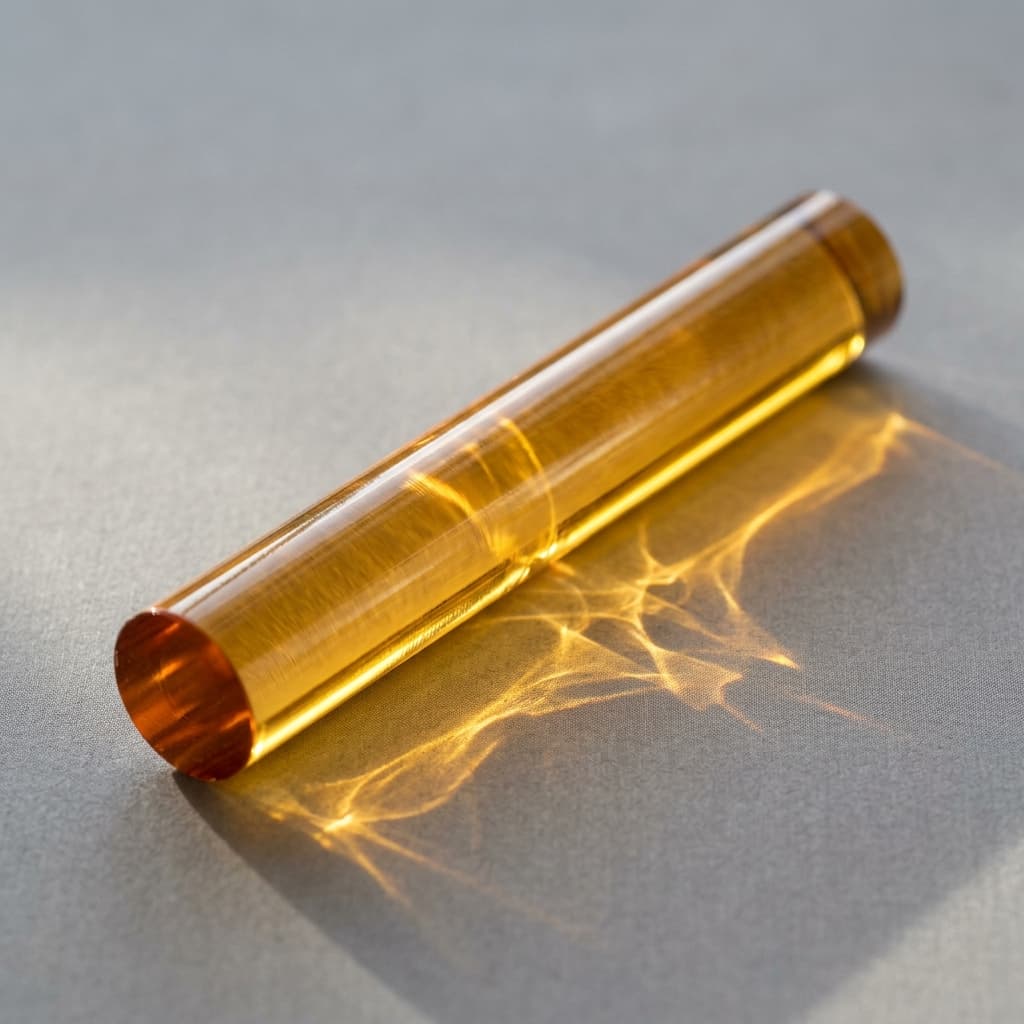

Ultem 1000 (PEI) - 0.375" dia x 120 Natural RodUltem 1000 (PEI) - 0.375" dia x 120 Natural Rod - view 2Ultem 1000 (PEI) - 0.375" dia x 120 Natural Rod - view 3
Same-day shipping available
Quality certified
Expert support

This PEI rod measures 0.375″ diameter × 120″ length, finished in natural. In stock — price $50.49 per Each.

SpecificationValueTolerance
Shape / FormRod
Diameter0.375″Standard
Length120″Standard
ColorNatural
Specifications

Resin

Ultem 1000

Shape

Rod

Length

120 in

Outer Diameter

0.375 in

Color

Natural

Unit of Measure

Each

Other PEI sizes

← All PEIstock & specs

Price

$50.49 / Each

In Stock
21010 available
Available at 11 locations

Ships direct from the manufacturer — under $500 of it per order includes a $150 small-order charge

View PEI Details
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
ResinUltem 1000
CategoryPEI
FormRod
Length120 in
Outer Diameter0.375 in

Typical Properties — Ultem 1000 (PEI) - 0.375" dia x 120 Natural Rod

Pei
General
PropertyTest MethodUnitValue
DensityD792lb/in³ / g/cm³0.046 / 1.2
Water absorption (24 / 96 h immersion @ 73°F)ASTM D570mg / %20/41 / 0.26/0.54
Water absorption (Saturation in air @ 73°F, 50% RH)ASTM D570%0.75
Water absorption (Saturation in water @ 73°F)ASTM D570%1.35
Flammability rating (UL 94, 3 / 6 mm thickness)UL 94V-0/V-0
Mechanical
PropertyTest MethodUnitValue
Tensile strength (At yield / break)ASTM D638psi / MPa15,250 / 105
Tensile strain at breakASTM D638%10
Tensile modulusASTM D638psi / MPa493,000 / 3,300
Compressive stress (At 10% nominal strain)ASTM D695psi / MPa22,000 / 150
Rockwell hardnessASTM D785R126
Operating Environment
PropertyTest MethodUnitValue
Thermal conductivity (@ 73°F)ASTM C177Btu·in/ft²·h·°F / W/m·K1.5 / 0.21
Coefficient of thermal expansion (Avg. 73 – 140°F)ASTM D696μin/in/°F / μm/m/°C25 / 45
Coefficient of thermal expansion (Avg. 73 – 212°F)ASTM D696μin/in/°F / μm/m/°C25 / 45
Heat deflection temperature (264 psi (Method A))ASTM D648°F / °C375 / 190
Max service temperature (Short-term)°F / °C390 / 195
Max service temperature (Continuous (5,000 / 20,000 h))°F / °C340 / 170
Electrical
PropertyTest MethodUnitValue
Dielectric strengthASTM D149V/mil / kV/mm685 / 26
Volume resistivityASTM D257Ω·cm>10¹⁴
Surface resistivityASTM D257Ω>10¹³

Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
