Ready Plastics
PEISheetNatural

PEI - 1.500" 24 x 48 Natural Sheet

About this product

PEI (Polyetherimide) Natural sheet in a 1.5" thick x 24" x 48" size delivers outstanding high heat deflection and reliable dimensional stability for demanding industrial and electrical applications. This Natural PEI sheet combines excellent strength, rigidity, and inherent flame resistance, making it a dependable choice for precision-machined parts and high-performance components.

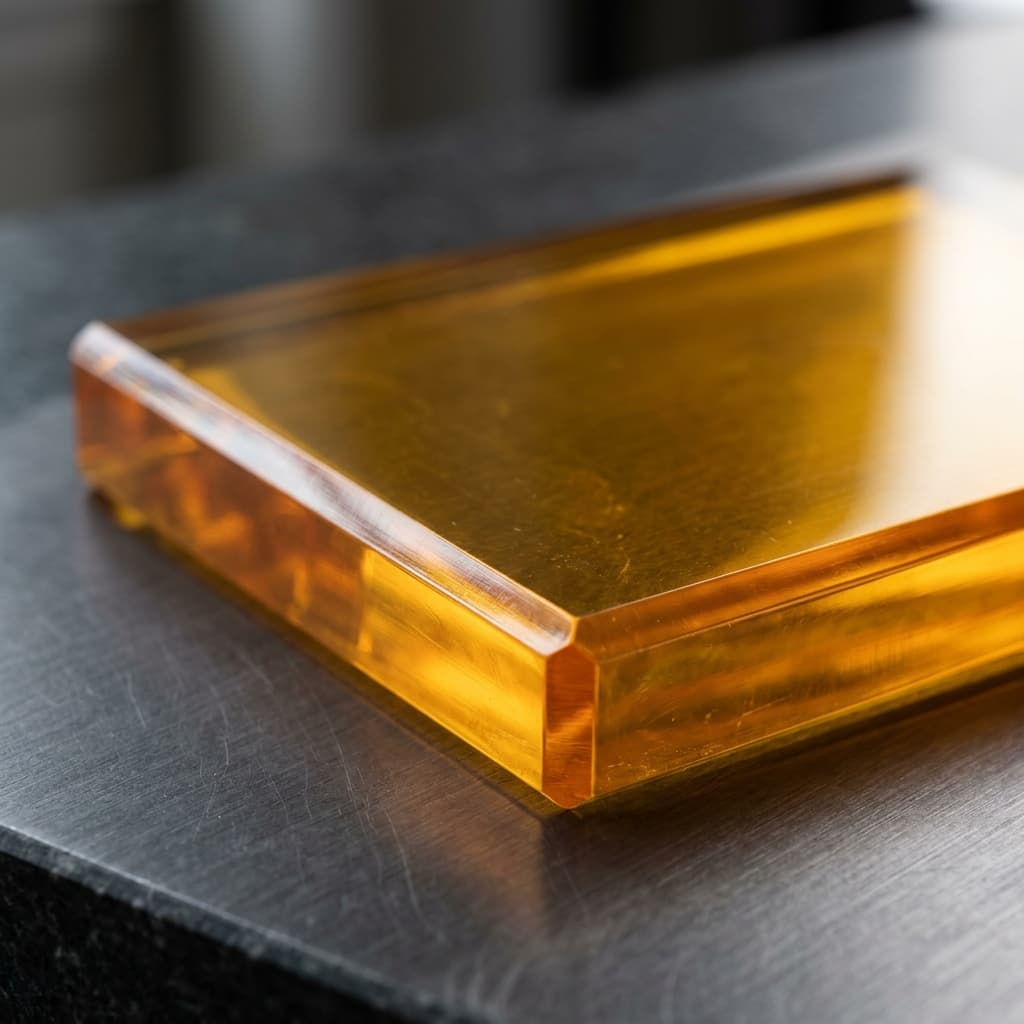

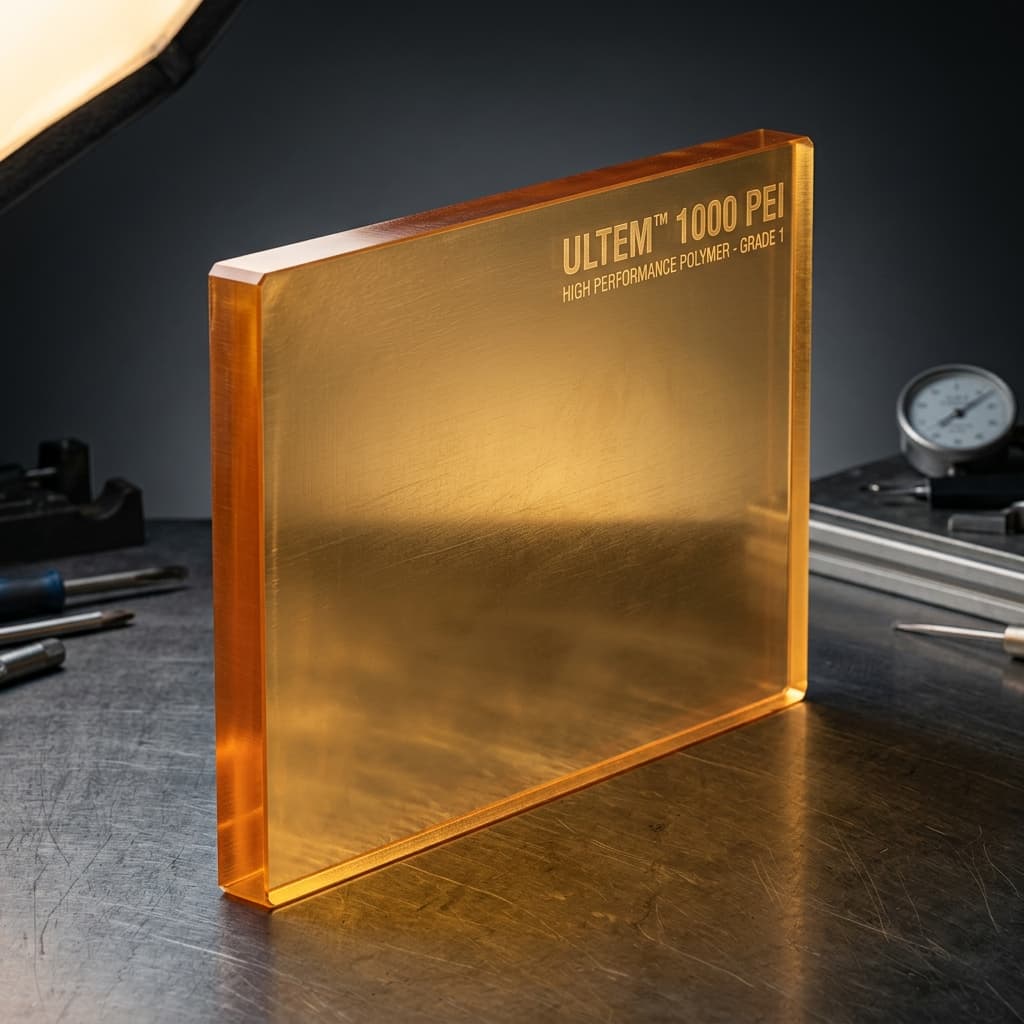

PEI - 1.500" 24 x 48 Natural SheetPEI - 1.500" 24 x 48 Natural Sheet - view 2PEI - 1.500" 24 x 48 Natural Sheet - view 3
Same-day shipping available
Quality certified
Expert support

This PEI sheet measures 1.5″ thick, 24″ × 48″, finished in natural. In stock — price $3954.23 per Each.

SpecificationValueTolerance
Shape / FormSheet
Thickness1.5″Standard
Width24″Standard
Length48″Standard
ColorNatural
Specifications

Shape

Sheet

Thickness

1.5 in

Width

24 in

Length

48 in

Color

Natural

Unit of Measure

Each

Other PEI sizes

← All PEIstock & specs

Price

$3954.23 / Each

In Stock
21010 available
Available at 11 locations

Ships direct from the manufacturer — under $500 of it per order includes a $150 small-order charge

View PEI Details
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
CategoryPEI
FormSheet
Thickness1.5 in
Width24 in
Length48 in

Typical Properties — PEI - 1.500" 24 x 48 Natural Sheet

Pei
General
PropertyTest MethodUnitValue
DensityD792lb/in³ / g/cm³0.046 / 1.2
Water absorption (24 / 96 h immersion @ 73°F)ASTM D570mg / %20/41 / 0.26/0.54
Water absorption (Saturation in air @ 73°F, 50% RH)ASTM D570%0.75
Water absorption (Saturation in water @ 73°F)ASTM D570%1.35
Flammability rating (UL 94, 3 / 6 mm thickness)UL 94V-0/V-0
Mechanical
PropertyTest MethodUnitValue
Tensile strength (At yield / break)ASTM D638psi / MPa15,250 / 105
Tensile strain at breakASTM D638%10
Tensile modulusASTM D638psi / MPa493,000 / 3,300
Compressive stress (At 10% nominal strain)ASTM D695psi / MPa22,000 / 150
Rockwell hardnessASTM D785R126
Operating Environment
PropertyTest MethodUnitValue
Thermal conductivity (@ 73°F)ASTM C177Btu·in/ft²·h·°F / W/m·K1.5 / 0.21
Coefficient of thermal expansion (Avg. 73 – 140°F)ASTM D696μin/in/°F / μm/m/°C25 / 45
Coefficient of thermal expansion (Avg. 73 – 212°F)ASTM D696μin/in/°F / μm/m/°C25 / 45
Heat deflection temperature (264 psi (Method A))ASTM D648°F / °C375 / 190
Max service temperature (Short-term)°F / °C390 / 195
Max service temperature (Continuous (5,000 / 20,000 h))°F / °C340 / 170
Electrical
PropertyTest MethodUnitValue
Dielectric strengthASTM D149V/mil / kV/mm685 / 26
Volume resistivityASTM D257Ω·cm>10¹⁴
Surface resistivityASTM D257Ω>10¹³

Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
