Ready Plastics
PEEK CF30RodBlack

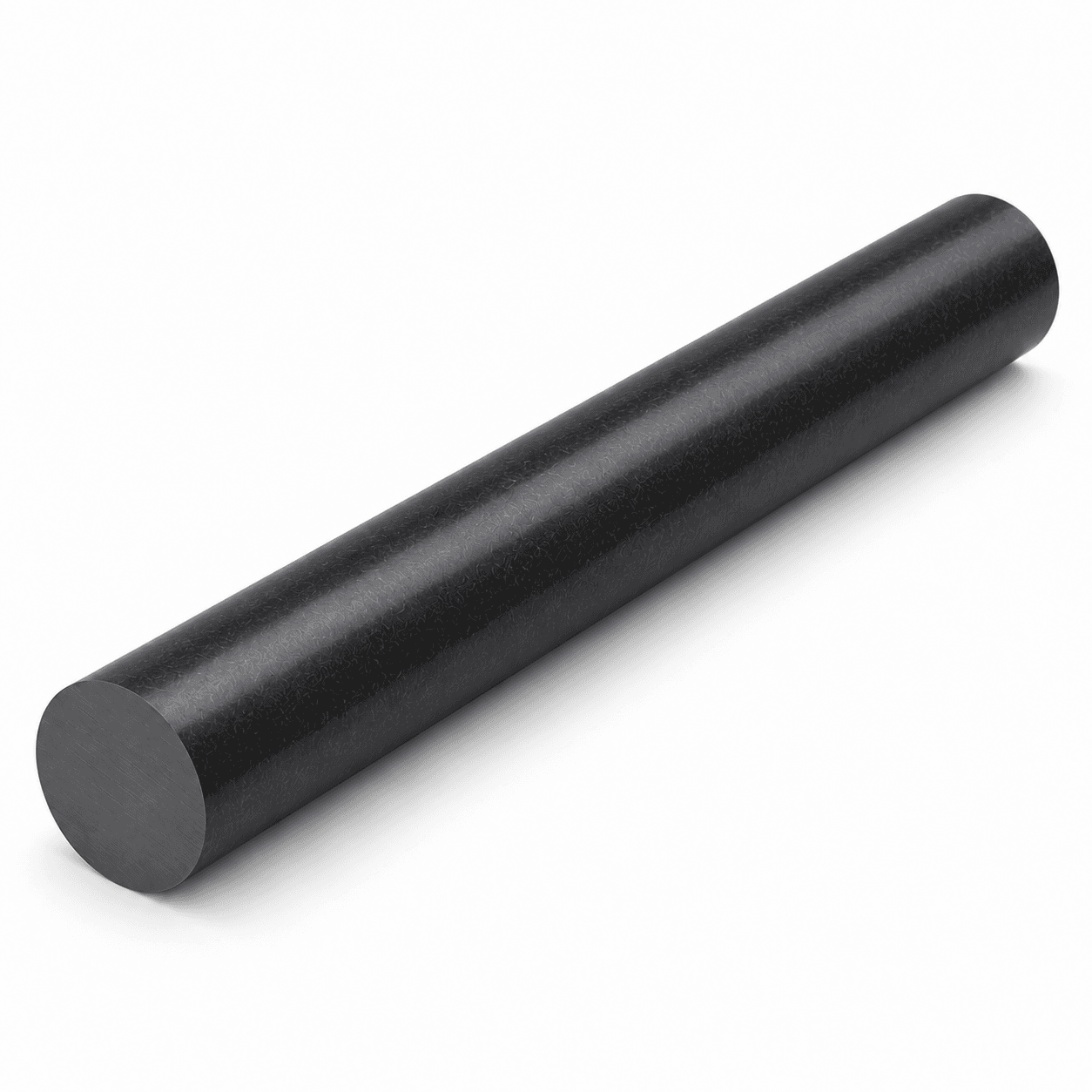

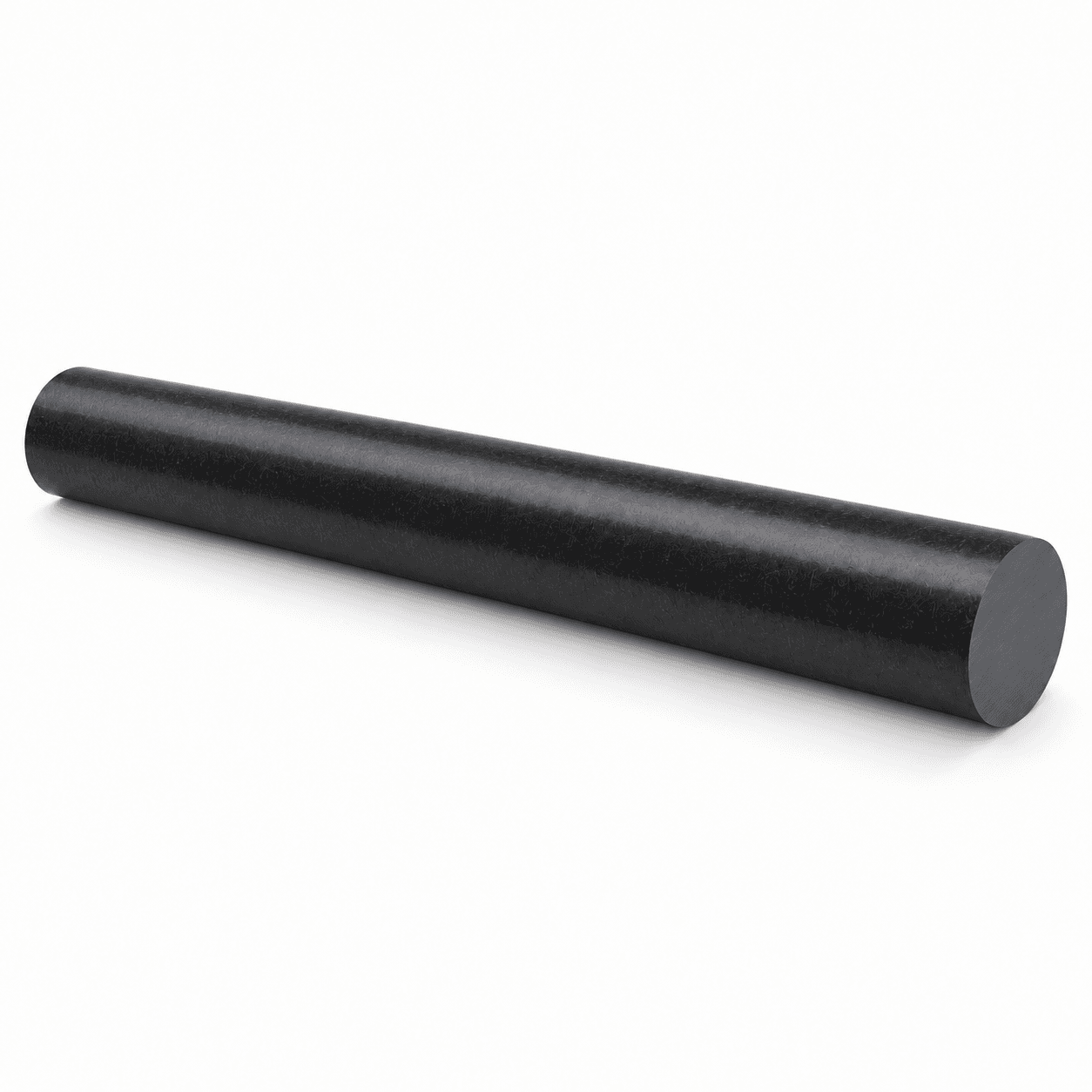

PEEK CF30 - 0.630" dia x 48 Black Rod

About this product

PEEK CF30 Black rod in 0.63" diameter x 48" long is made from 30% Carbon Fiber Reinforced PEEK for a high-performance balance of strength, stiffness, and reduced weight. Ideal for demanding mechanical and industrial applications, this carbon-filled PEEK also offers excellent heat and chemical resistance with improved dimensional stability.

PEEK CF30 - 0.630" dia x 48 Black RodPEEK CF30 - 0.630" dia x 48 Black Rod - view 2PEEK CF30 - 0.630" dia x 48 Black Rod - view 3
Same-day shipping available
Quality certified
Expert support

This PEEK CF30 rod measures 0.63″ diameter × 48″ length, finished in black. Available to order — price $279.41 per Each.

SpecificationValueTolerance
Shape / FormRod
Diameter0.63″Standard
Length48″Standard
ColorBlack
Specifications

Shape

Rod

Length

48 in

Outer Diameter

0.63 in

Color

Black

Unit of Measure

Each

Other PEEK CF30 sizes

← All PEEK CF30stock & specs

Price

$279.41 / Each

In Stock
21010 available
Available at 11 locations

Ships direct from the manufacturer — under $500 of it per order includes a $150 small-order charge

View PEEK CF30 Details
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
CategoryPEEK CF30
FormRod
Length48 in
Outer Diameter0.63 in

Typical Properties — PEEK CF30 - 0.630" dia x 48 Black Rod

Peek Cf30
General
PropertyTest MethodUnitValue
DensityISO 1183g/cm³ / lb/in³1.39 / 0.05
Molding shrinkage (longitudinal)ISO%0.3
Molding shrinkage (transverse)ISO%0.9
Mechanical
PropertyTest MethodUnitValue
Tensile strengthISOMPa / psi242 / 35,000
Tensile modulusISOMPa / psi24400 / 3,538,000
Elongation at breakISO%1.8
Impact strength (Charpy)ISOkJ/m² / ft·lbf/in²44 / 20
Operating Environment
PropertyTest MethodUnitValue
Glass transition temp.—°C / °F143 / 285
Melting temperature—°C / °F343 / 645
Heat deflection temp.ISO-R°C / °F332 / 625
Service temperature (long term)—°C / °F260 / 500
Service temperature (short term)—°C / °F300 / 570
Electrical
PropertyTest MethodUnitValue
Surface resistivityENΩ10⁵
Volume resistivityENΩ·cm10⁴

Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
