G7SheetNatural
Test Item
Same-day shipping available
Quality certified
Expert support
About This Product

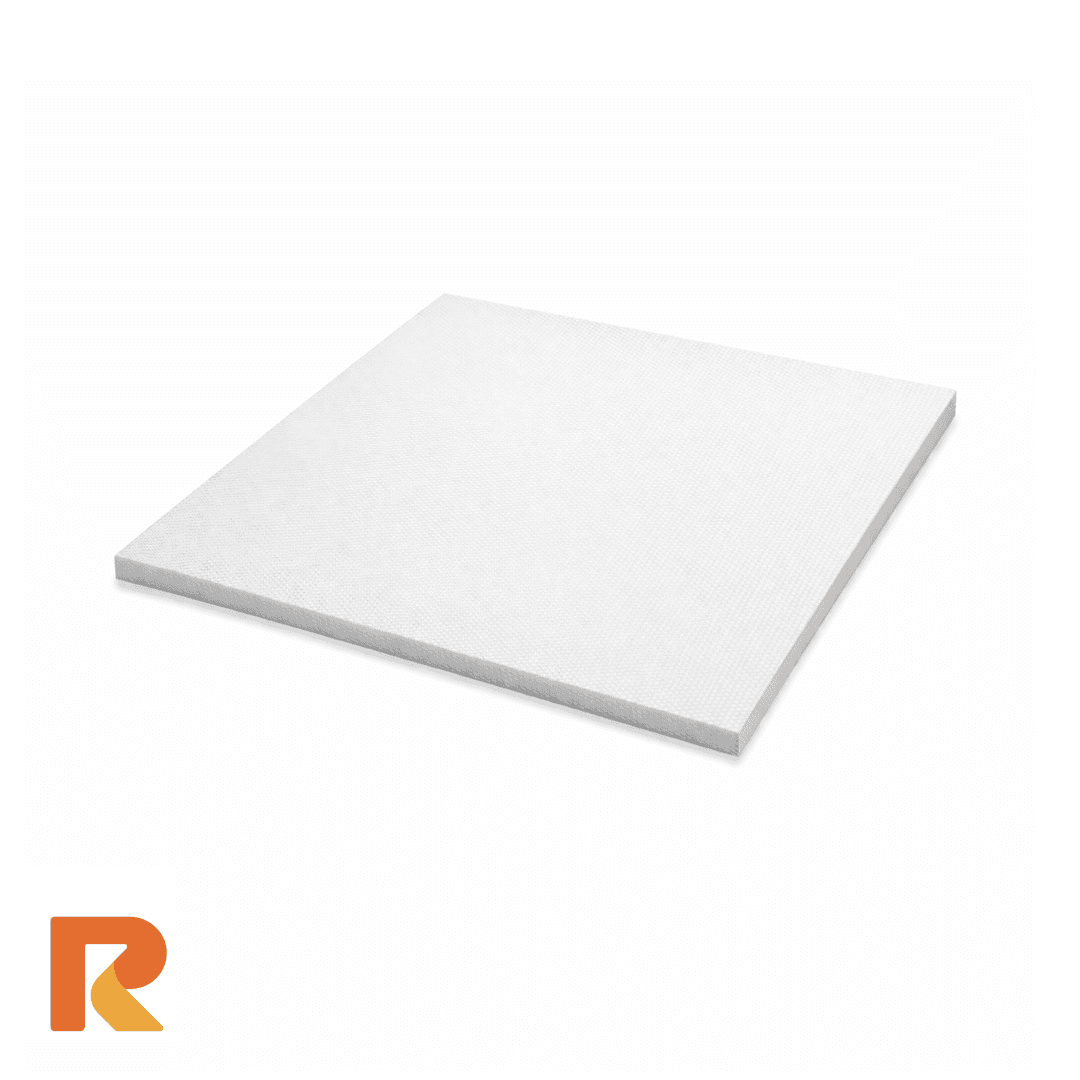

G7 Sheet in Natural is supplied as 0.0" thick, 0" length stock and is made from G7 for dependable electrical insulation in demanding environments. This high-strength laminate offers excellent arc and tracking resistance along with reliable mechanical performance, making it a solid choice for electrical and industrial applications.
Specifications
Shape
Sheet
Color
Natural
Unit of Measure
Each
Starting at
$50.00
per Each
In Stock
21010 availableAvailable at 11 locations
Ships same day if ordered by 2pm
Quality guaranteed
Quick Info
Typical Properties — Test Item
Glass Silicone G7General
DescriptionValue
Specific gravity1.78
Flammability rating94V-0
Water absorption over 24 hours0.20
Mechanical
PropertyTest MethodUnitValue
Tensile strengthpsi / MPa45,000 / 310
Flexural strength (LW -A 0.125″)psi / MPa25,000 / 170
Shear strengthpsi / MPa17,000 / 115
Bond strengthpsi / MPa900 / 6.2
Hardness (Mohs Scale)105
Izod impact strength (49 degrees Celsius -LW)6.50
Operating Environment
PropertyTest MethodUnitValue
Maximum operating temperature°C / °F220 / 425
Typical properties are provided for reference only. Values may vary based on processing conditions, form factor, and lot. Contact Ready Plastics for certified test data.
